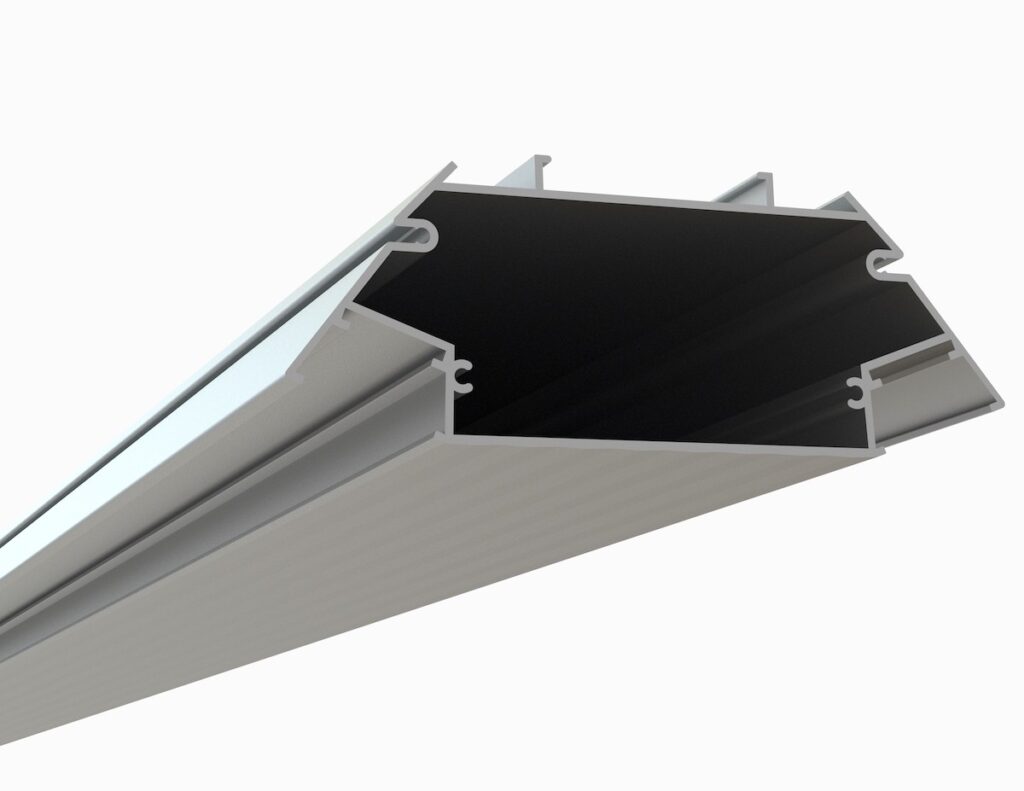

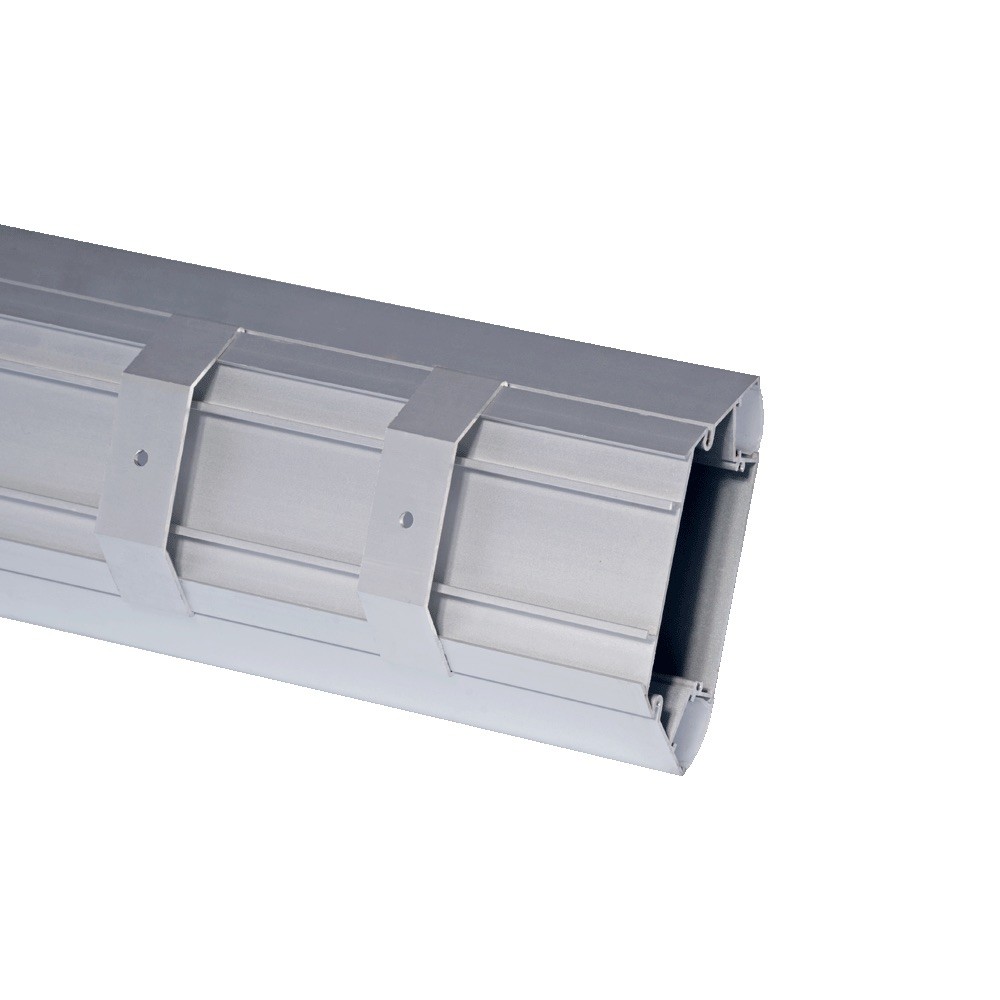

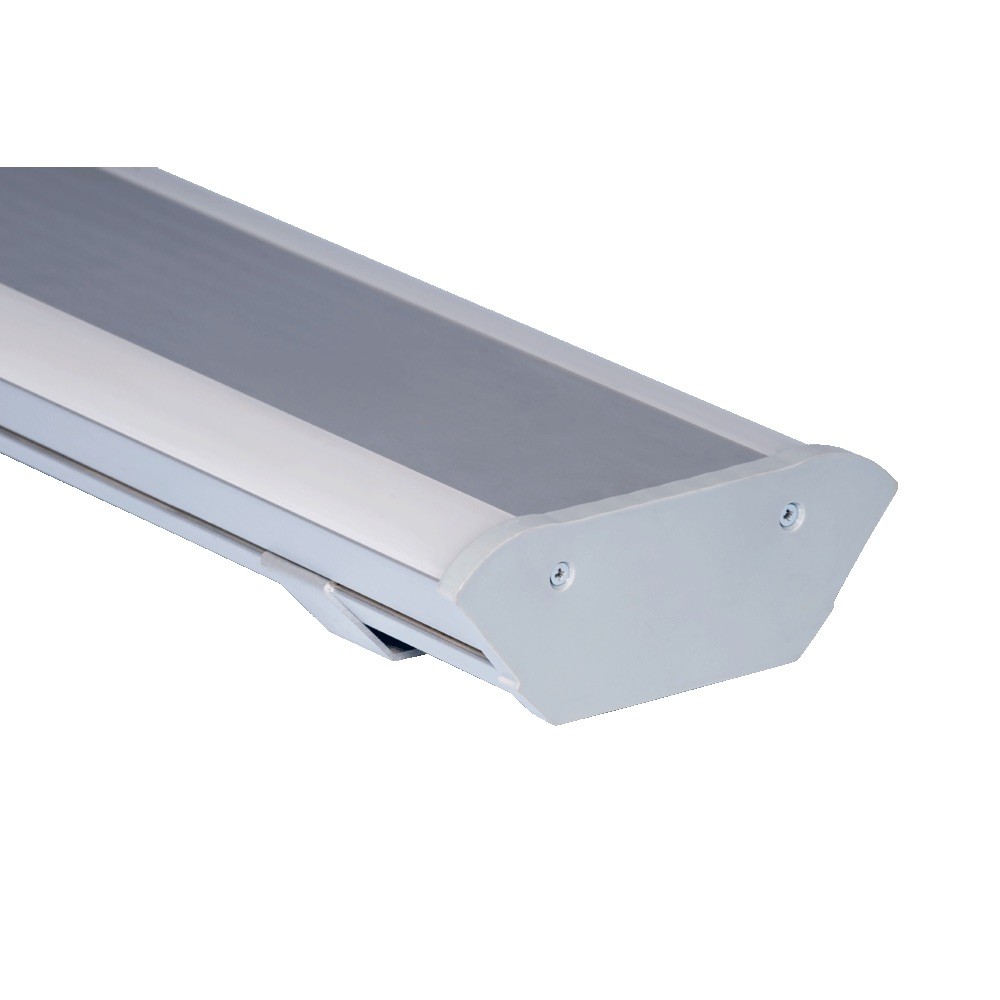

533ASL – Two Sided Linear LED Channel

The 533ASL is a multipurpose LED Channel Luminaire with two channels on sides and a large internal housing space for LED Drivers.

The 533ASL is a multipurpose LED Channel Luminaire with two channels on sides and a large internal housing space for LED Drivers. This profile is compatible with LED lighting sources upto 16mm (0.63″) wide. It provides a wide range of options for indoor and outdoor use. Rich accessories offer application options like surface mount or pendant

Type: LED Channel
Material: Aluminum 6063T5
Surface: Natural Anodized

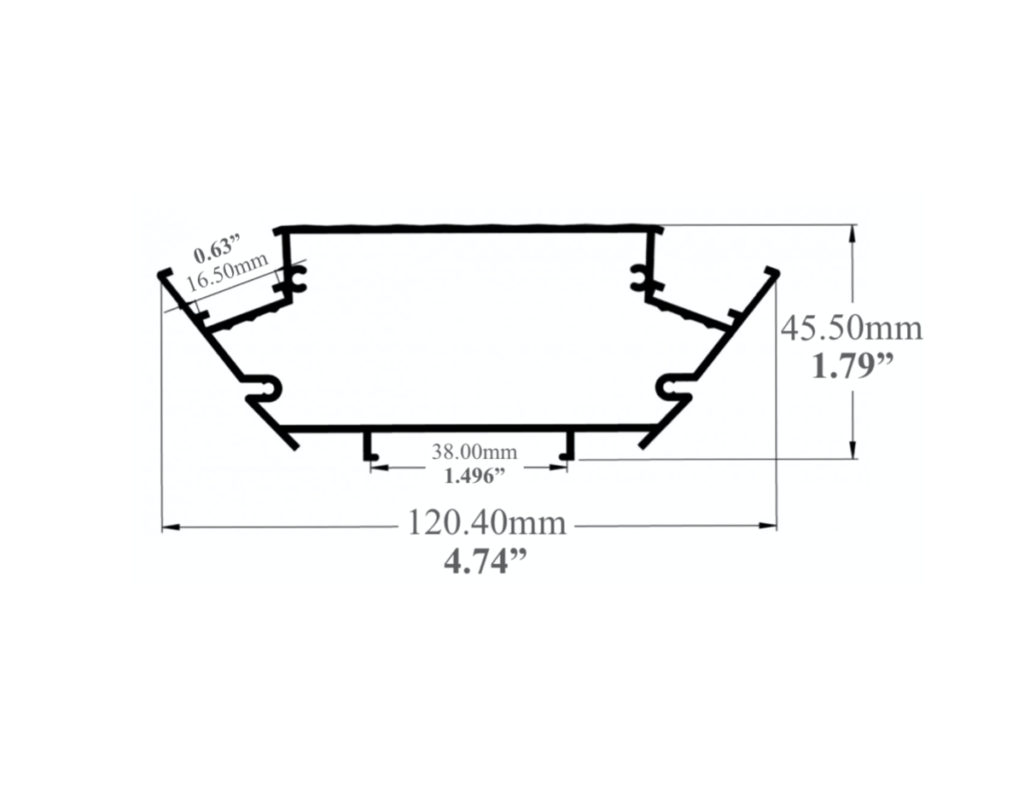

Height: 45.50mm / 1.79″
Width: 120.40mm / 4.74″

Length Availability
4ft (Actual Size 47”) / 1.20m
8ft (Actual Size 94”) / 2.40m
10ft (Actual Size 118”) / 3.00m
Custom Lengths up to 10ft / 3m

Two Sided Linear mount or pendant Type: LED Channel Material: Aluminum 6063T5 Surface: Natural Anodized Aluminum 6063T5 4FT / 8FT / 10FT

TYPE	LED Channel
MATERIAL	Aluminum 6063T5
SURFACE	mount or pendant Type: LED Channel Material: Aluminum 6063T5 Surface: Natural Anodized
CUSTOM LENGTHS	up to 10ft / 3m

This profile is compatible with LED lighting sources upto 16mm (0.63") wide.
It provides a wide range of options for indoor and outdoor use.

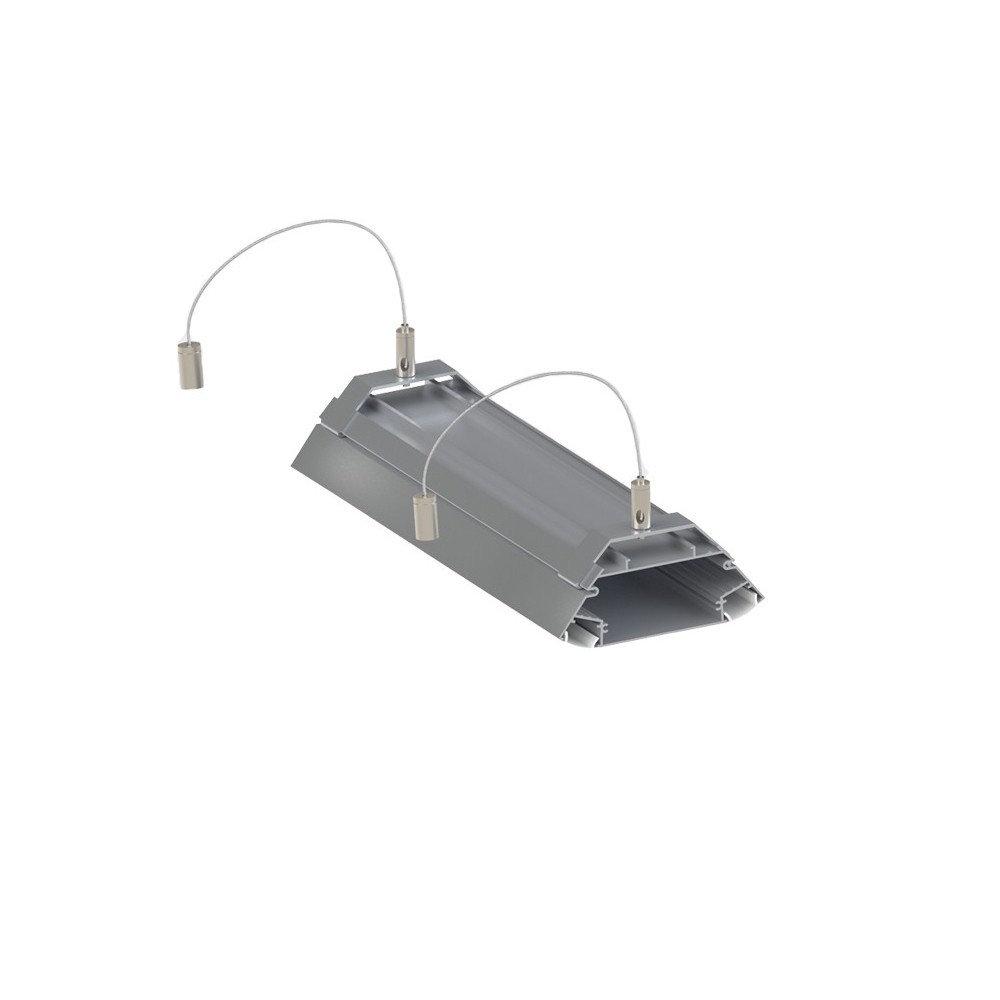

Rich accessories offer application options like surface mount or pendant
