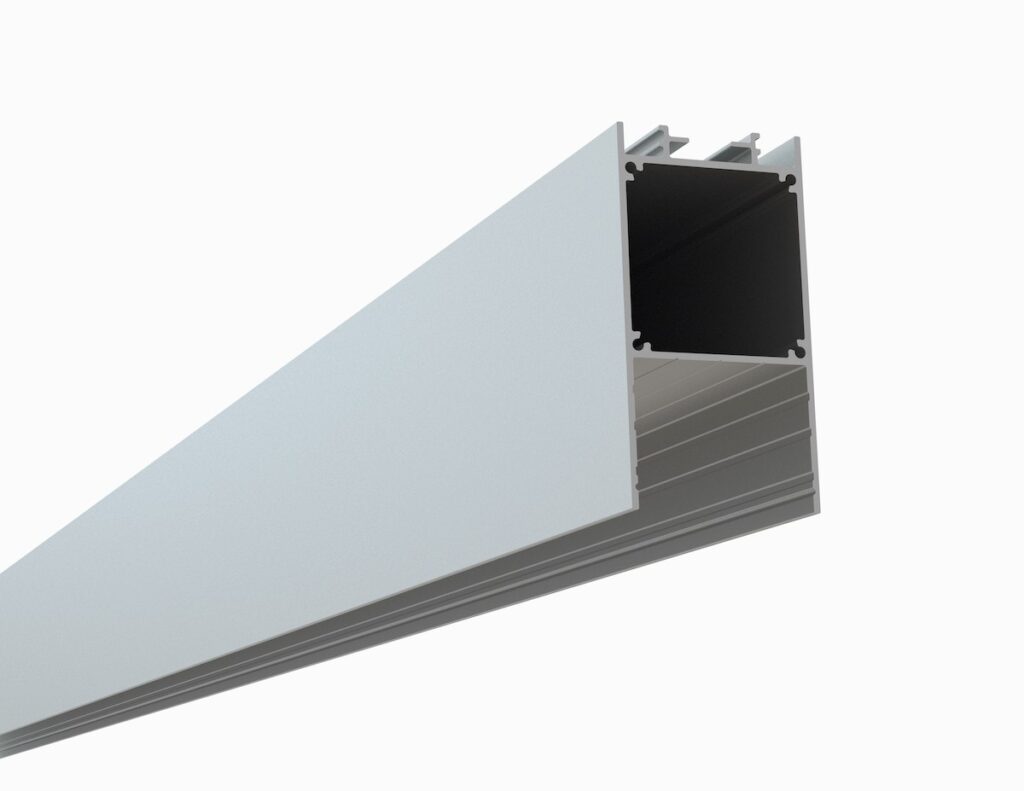

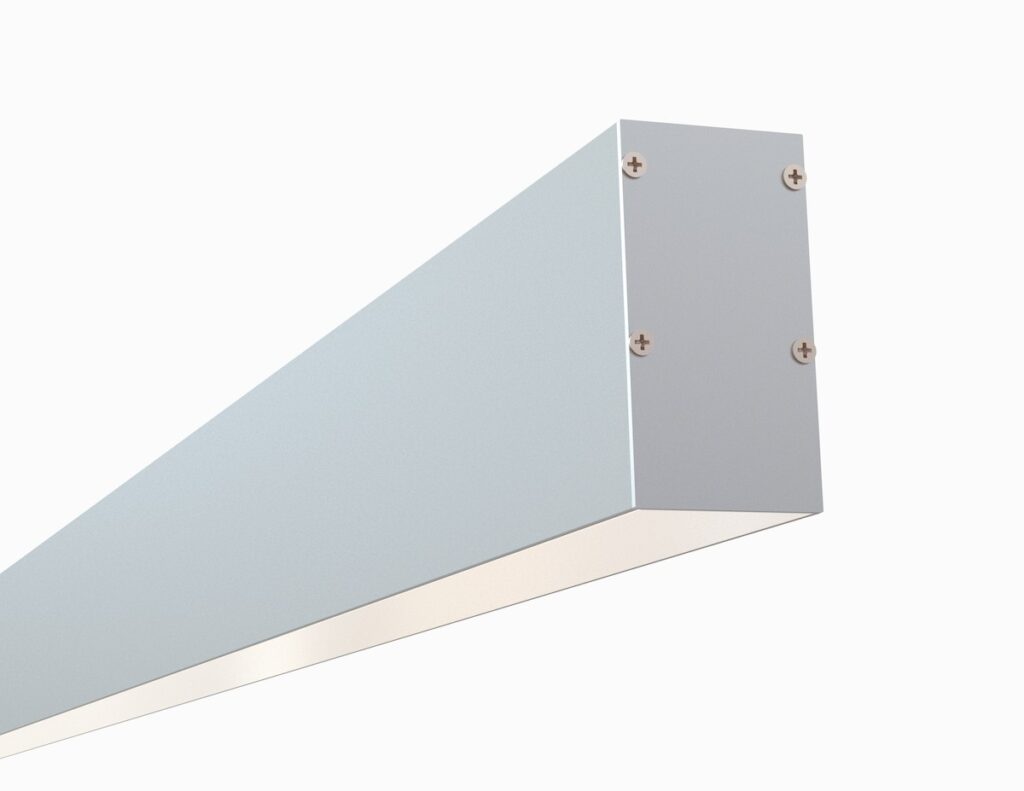

535ASL – Slim Linear Pendant LED Channel

The 535 Series is a Suspended Slim LED Aluminum Channel for architectural applications with a surface area that supports LED lighting sources upto 30mm (1.18”) wide.

The 535 Series is a Suspended Slim LED Aluminum Channel for architectural applications with a surface area that supports LED lighting sources upto 30mm (1.18”) wide.

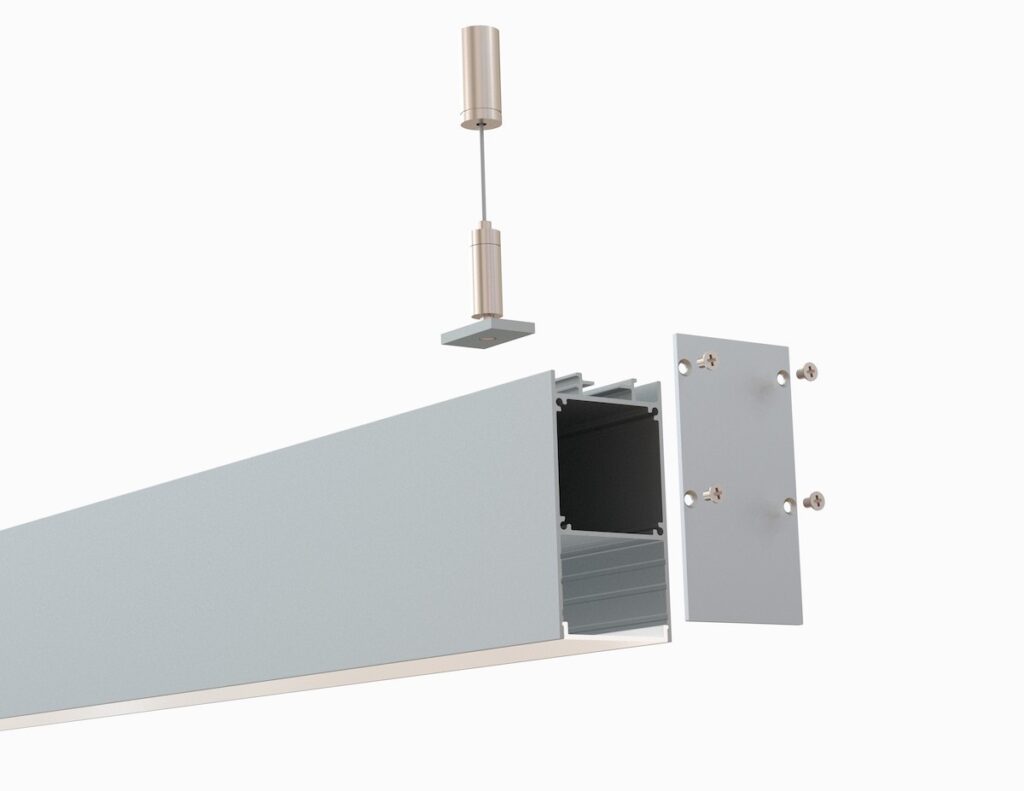

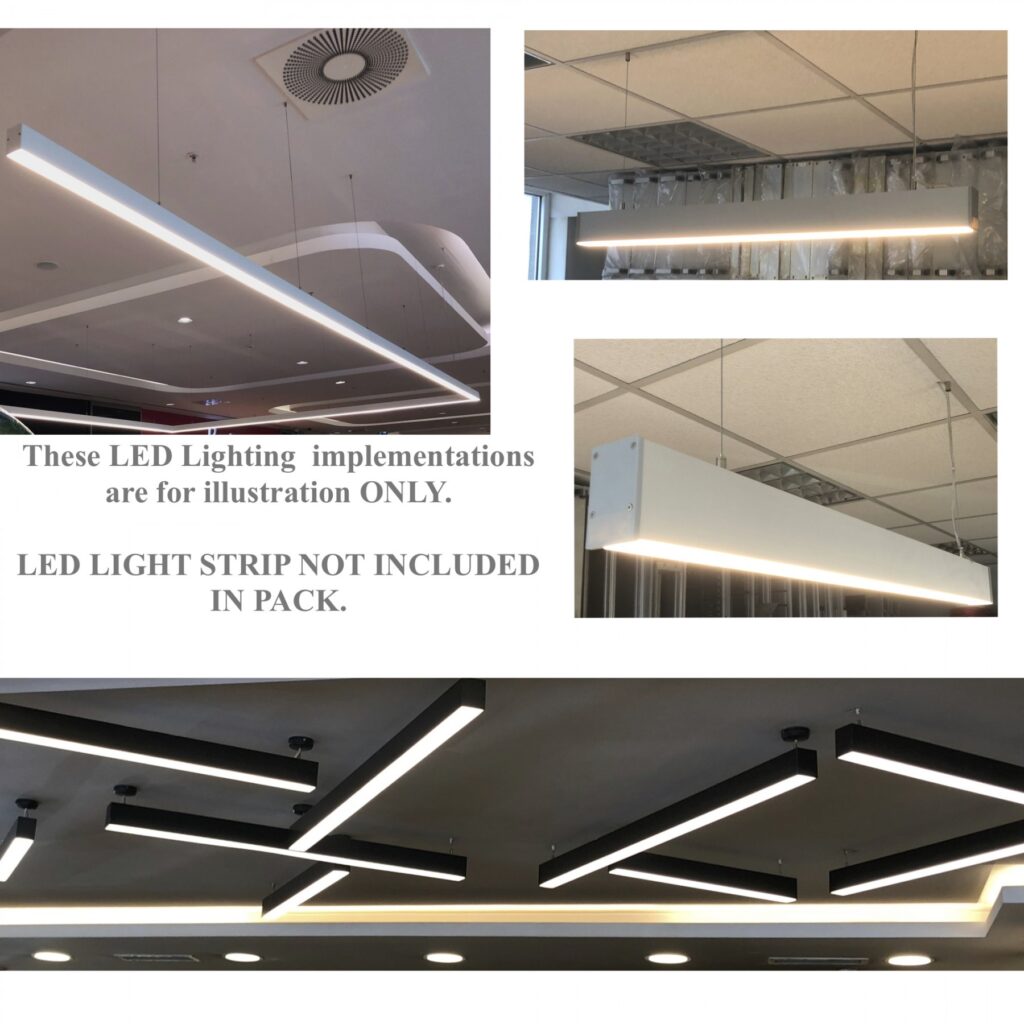

It offers an internal housing space for slim LED Drivers and can be used in Suspended and Surface Mount applications.

Type: LED Channel
Material: Aluminum 6063T5
Surface: Natural Anodised

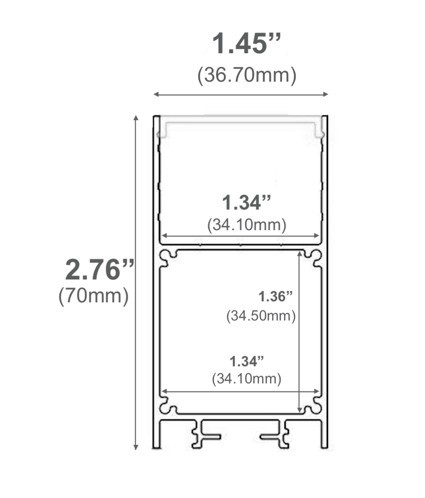

Height: 70.00mm / 2.76″
Width: 36.7mm / 1.45″

Length Availability
4ft (Actual Size 47”) / 1.20m
8ft (Actual Size 94”) / 2.40m
10ft (Actual Size 118”) / 3.00m
Custom Lengths up to 10ft / 3m

Slim Linear Pendant area that supports LED lighting sources upto 30mm (1.18”) wide. It offers an internal housing space for slim LED Drivers and can be used in Suspended and Surface Mount applications. Type: LED Channel Material: Aluminum 6063T5 Surface: Natural Anodised Aluminum 6063T5 4FT / 8FT / 10FT

535ASL – Slim Linear Pendant LED Channel

TYPE	LED Channel
MATERIAL	Aluminum 6063T5
SURFACE	area that supports LED lighting sources upto 30mm (1.18”) wide. It offers an internal housing space for slim LED Drivers and can be used in Suspended and Surface Mount applications. Type: LED Channel Material: Aluminum 6063T5 Surface: Natural Anodised
CUSTOM LENGTHS	up to 10ft / 3m

It offers an internal housing space for slim LED Drivers and can be used in Suspended and Surface Mount applications.
