DD-24160-CCT is a LED driver and tunable white controller with dimming capability for LED lighting, offering flickerfree 20kHz PWM output and a wide 0.3%100% dimming range. It features separate color temperature and dimming control. With high efficiency (up to 92%), builtin active PFC, and multiple protections, it ensures reliable performance. Designed for dry and damp locations, it also operates silently via free air convection.
| OUTPUT | Constant Voltage |
| INPUT RANGE | 120VAC |

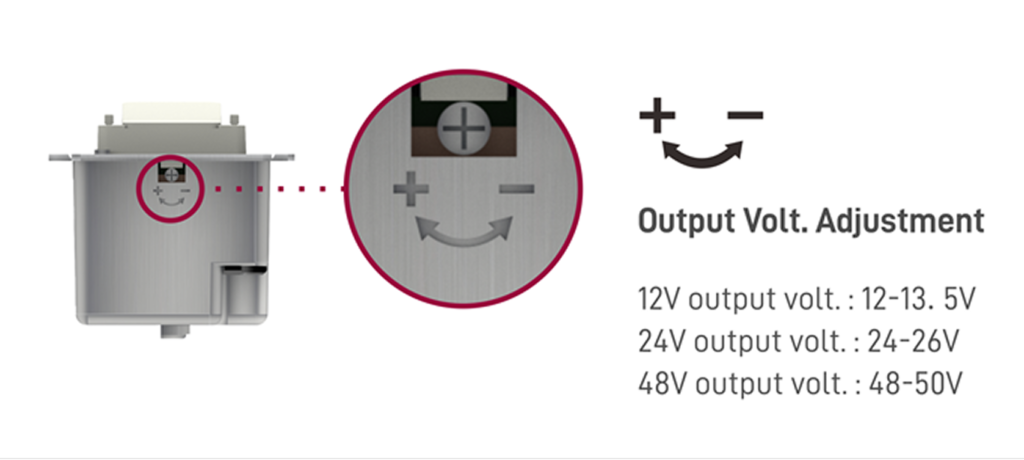

| DC VOLTAGE | 24V (24V26V adjust by knob) |
| RATED CURRENT | 6.67A |
| RATED POWER | 160W |
| VOLTAGE RIPPLE | 2% |
| DIMMING RANGE | 0.3%100% |
| EFFICIENCY (Typ.) | 94.5% @ full load |

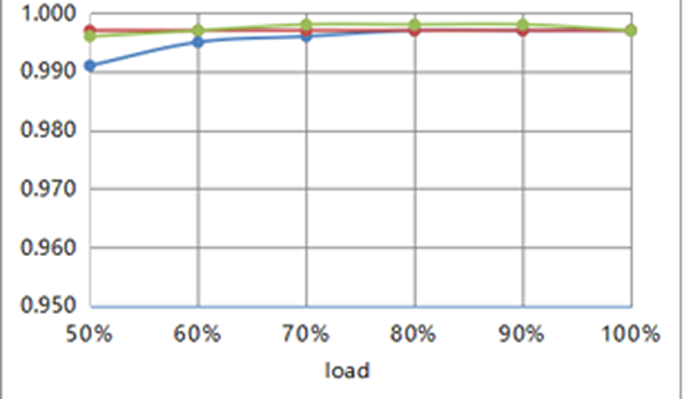

| POWER FACTOR (Typ.) | 0.99 @ full load |
| PROTECTIONS | Short circuit / Over load / Over temperature |
| HEAT DISSIPATION | Cooling by free air convection |
| WATERPROOF PERFORMANCE | For dry and damp locations (US) |
| WORKING TEMP. | 40～+60℃ |
| STORAGE TEMP. / HUMIDITY | 40 +80℃, 10 95% RH noncondensing |
| CERTIFICATES | UL / cUL / FCC / Class P / SELV / RoHS / Reach |
| DIMENSION | 105*54*51mm / 4.134 x 2.126 x 1.996 in |
| WARRANTY | 5 years warranty |
