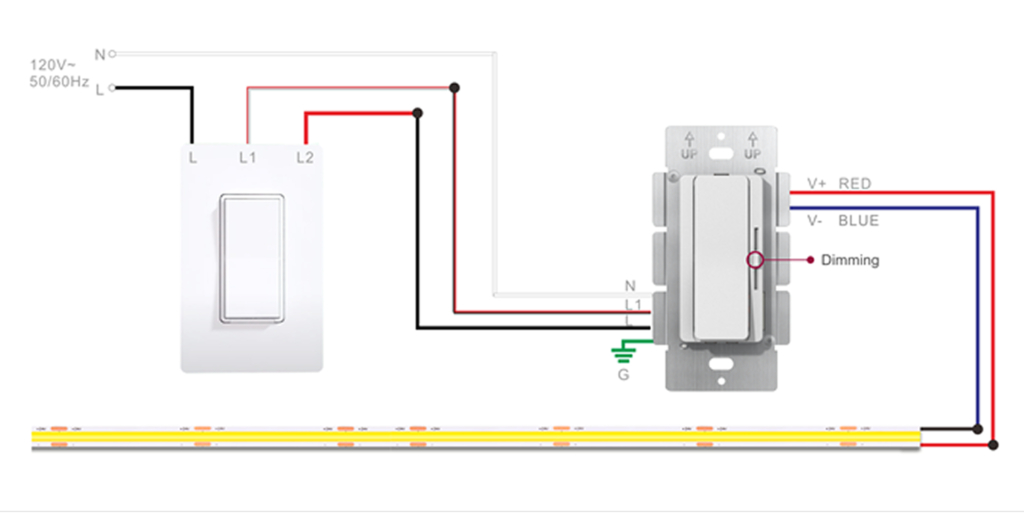

The DD24060DIM is a 2in1 constant voltage LED driver and dimmer designed for LED lighting applications. It offers flickerfree 20kHz PWM output, a wide 0.3%100% dimming range, builtin active PFC, and multiple protection features including short circuit, overload, and overtemperature protection. Designed for dry and damp locations, it operates silently via free air convection and supports finetune voltage adjustment and 3way switch setups.
| Model | DD24060DIM |
| Input Range | 120VAC |
| Output Type | Constant Voltage |
| DC Voltage | 12V / 24V / 48V (adjustable by knob) |
| Rated Current | 5A / 2.5A / 1.25A |
| Rated Power | 60W |
| Dimming Range | 0.3%100% |

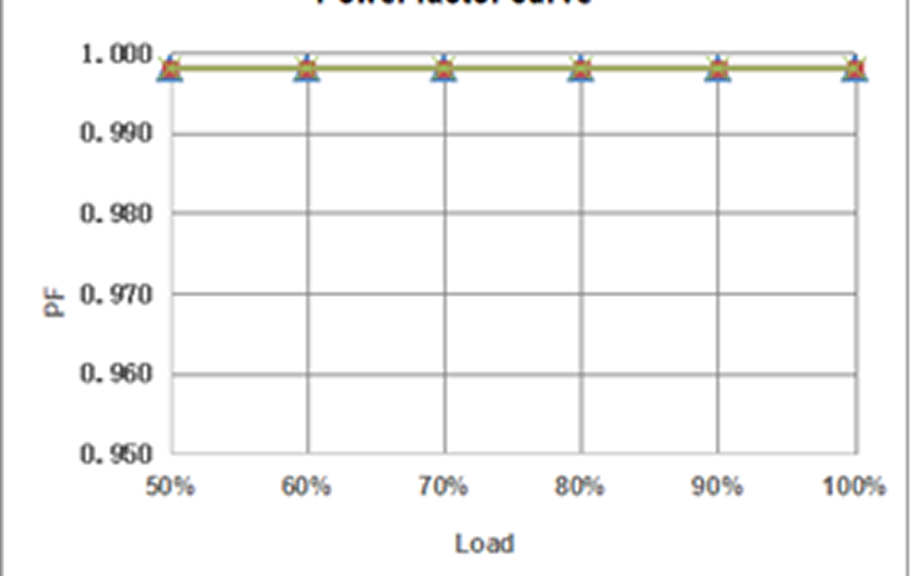

| Power Factor (Typ.) @ full load | 0.99 |
| THD (Typ.) @ full load | ≤10% |

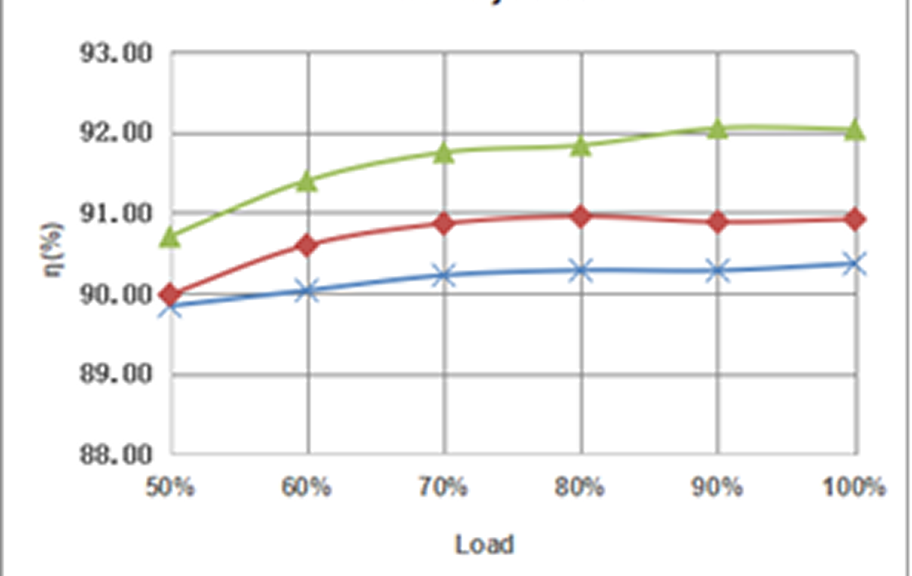

| Efficiency (Typ.) @ full load | 90% / 91% / 92% |
| Working Temperature | 40°C to +60°C |
| Working Humidity | 20–95% RH, noncondensing |

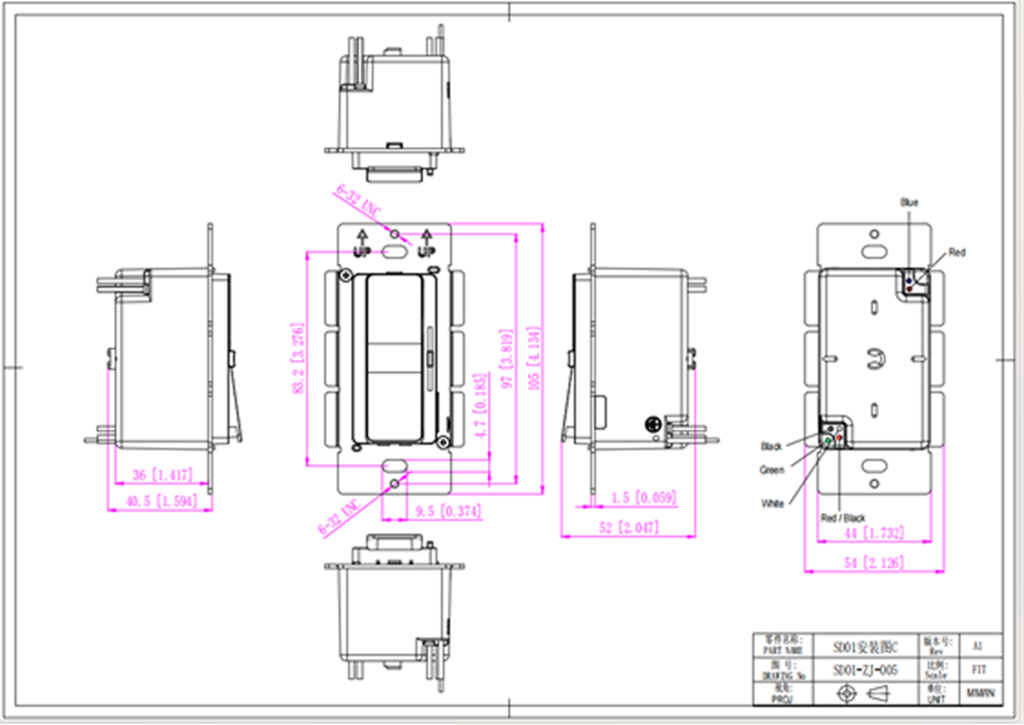

| Dimension | 105 x 54 x 51 mm / 4.134 x 2.126 x 1.996 in |
| Safety Standards | UL8750; CAN/CSAC22.2 No.250.13 (US) |
