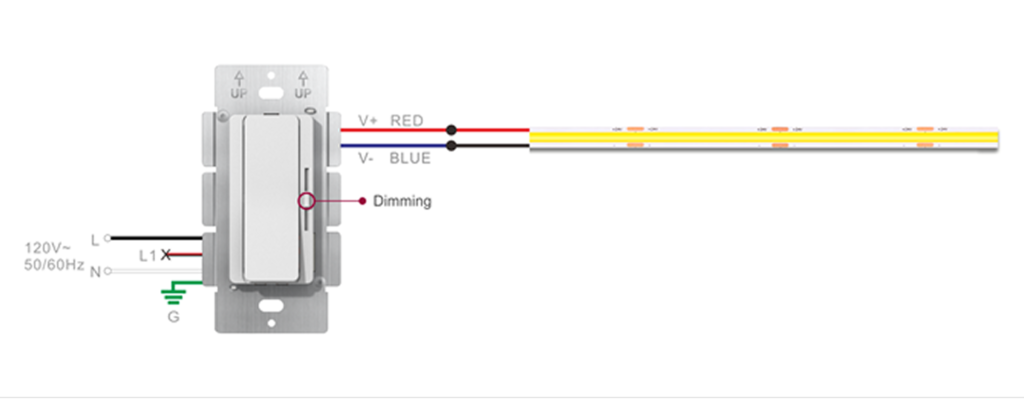

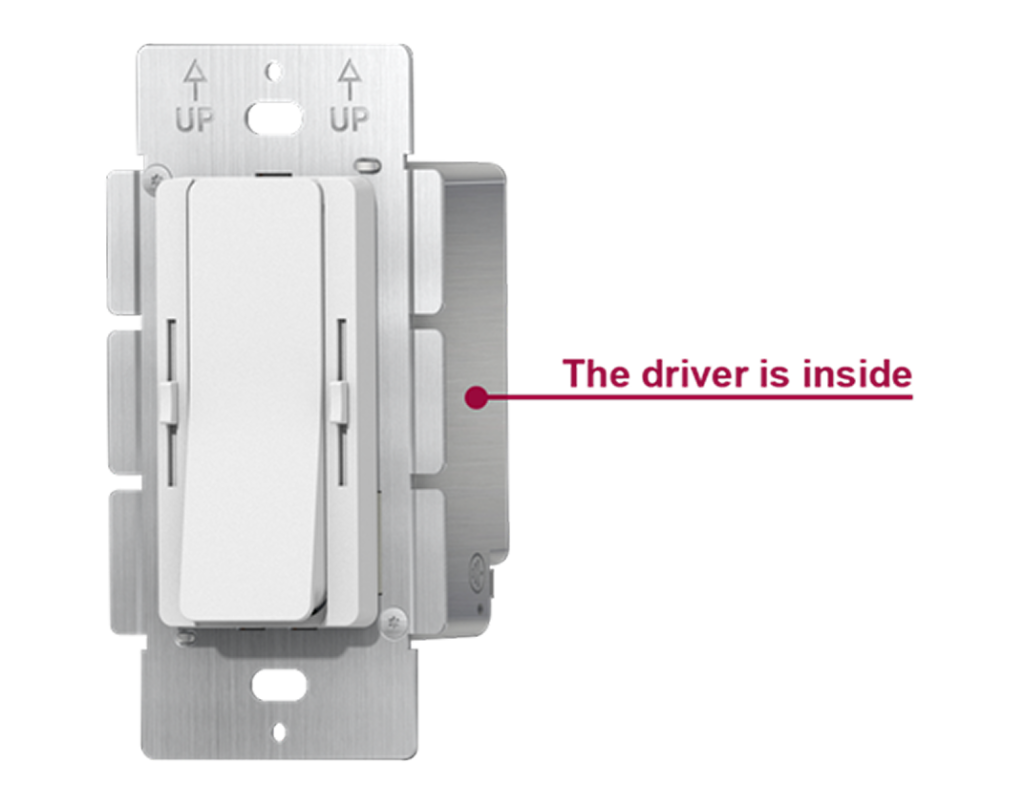

The DD24096DIM is a 2in1 constant voltage LED driver and dimmer built for LED lighting applications. It provides flickerfree 20kHz PWM output, a broad 0.3%100% dimming range, builtin active PFC, and short circuit, overload, and overtemperature protection. Designed for dry and damp locations, it supports finetune output voltage adjustment and 3way switch installations.
| Model | DD24096DIM |
| Input Range | 120VAC |
| Output Type | Constant Voltage |

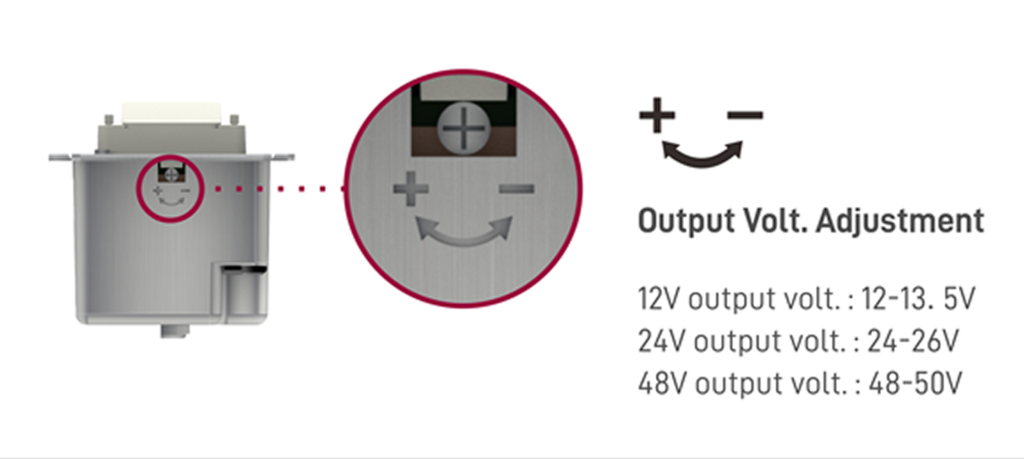

| DC Voltage | 24V / 48V (adjustable by knob) |
| Rated Current | 4A / 2A |
| Rated Power | 96W |
| Dimming Range | 0.3%100% |

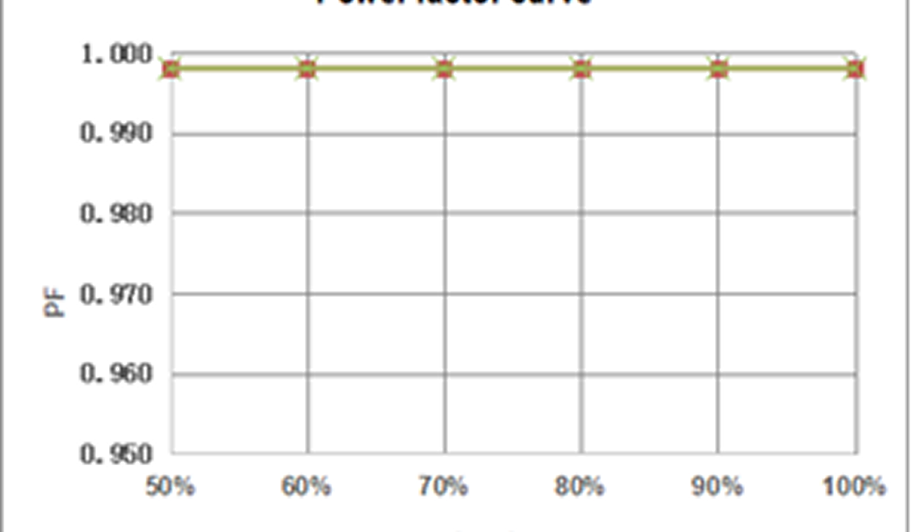

| Power Factor (Typ.) @ full load | 0.99 |
| THD (Typ.) @ full load | ≤10% |

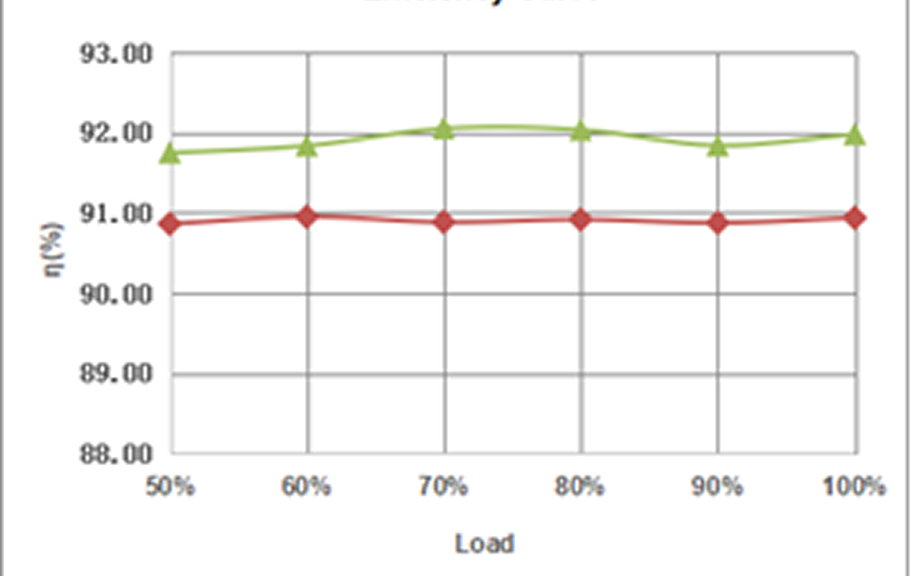

| Efficiency (Typ.) @ full load | 91% / 92% |
| Working Temperature | 40°C to +60°C |
| Working Humidity | 20–95% RH, noncondensing |
| Dimension | 105 x 54 x 51 mm / 4.134 x 2.126 x 1.996 in |
| Safety Standards | UL8750; CAN/CSAC22.2 No.250.13 (US) |
