The FS-2412 is a high-efficiency flexible sheet module capable of delivering 2700 Lumens per SHEET. This flexible light sheet can be cut to create a unique light shape. The FS-2412 is ideal for creating backlights for photos, graphics, signs, displays and photography applications.
| INPUT VOLTAGE | 24V |
| POWER CONSUMPTION | 22W |
| LUMEN OUTPUT | 124 SLM/W |
| NO OF LEDS | 288 per Sheet |
| CRI | 90+ |
| COLOR TEMPERATURE | 27K/30K/35K/40K/50K |
| BEAM ANGLE | 120 |

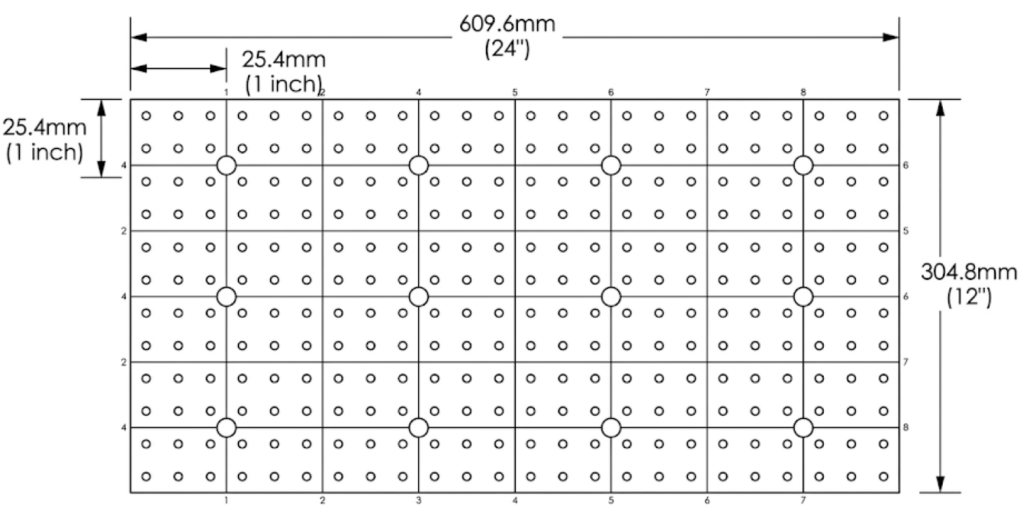

| CUTTABLE | 25.4MM X 25.4MM |
| MAX RUN | 10 Sheets (5A/220vhs) (19.17A) |
| DIMMING | ELV, 0-10V and TRIAC |
| OPERATING TEMPERATURE | -22°F (-30°C) to 104°F (40°C) |
| ENVIRONMENT | Dry/Damp Location only (Indoor) |
| CERTIFICATIONS | UL Listed |
| LUMEN MAINTENANCE | 50,000 Hrs. |
2700 Lumens per Sheet
Ultra-Thin LED Light Sheet
Flexible 50mm bend diameter
Superior Color Rendering Index
