THE FS-2412RGBCCT LED sheet series is ideal for light boxes with a depth of >1.57″. RGB+CCT gives you access to color changing lights and color temperature adjustable light in one single sheet. Its thick PCB board and high quality SMD5050 5 in1 chips will ensure constant brightness. It is highly versatile, dimmable, and suitable for both lighting and accenting. There are XH-6Y connectors easy for connection and super slim 3M double-side tape with strong adhesive.
| INPUT VOLTAGE | 24V |
| POWER CONSUMPTION | 35W |
| LUMEN OUTPUT | 2100 LM/W |
| NO OF LEDS | 2216 per Sheet |
| CRI | 90+ |
| COLOR TEMPERATURE | RGB + CCT (3000K + 6000K) |
| BEAM ANGLE | 120 |

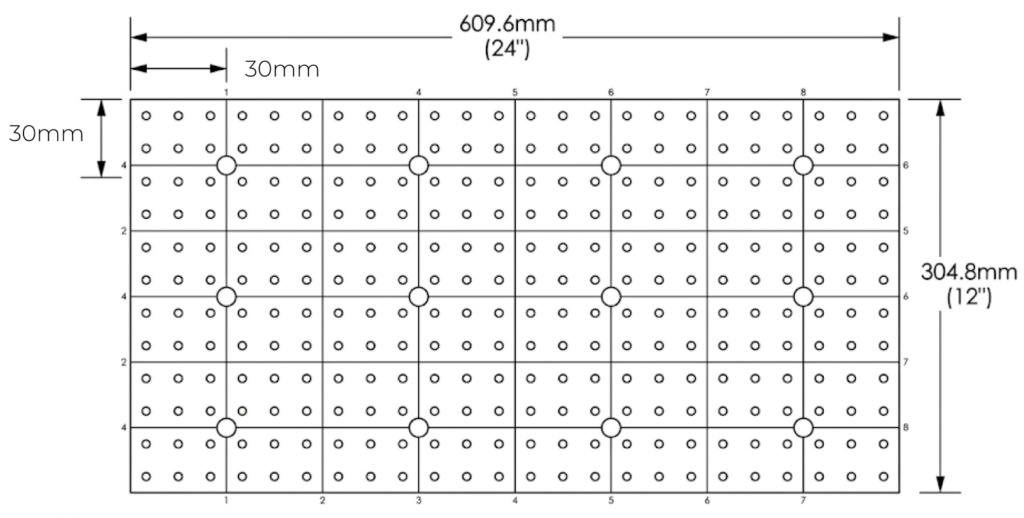

| CUTTABLE | 30mm x 30mm |
| MAX RUN | 10 Sheets (19.17A/220ws) |
| DIMMING | ELV, 0-10V and TRIAC |
| OPERATING TEMPERATURE | -22°F (-30°C) to 104°F (40°C) |
| ENVIRONMENT | Dry/Damp Location only (Indoor) |
| CERTIFICATIONS | UL Listed |
| LUMEN MAINTENANCE | 50,000 Hrs. |
Up to 2100 Lumens per Sheet
Ultra-Thin LED Light Sheet
Flexible PCB for proper bending and versatile use
Superior Color Rendering Index
Suitable for Accent or Ambient Lighting
