FUTD01 – DMX 512 LED Transmitter

The FUTD01 is a DMX 512 LED transmitter that follows the standard DMX512 protocol, transmits 80 channels simultaneously, and can control 16 groups of 2.4G RGB+CCT lamps.

The FUTD01 is a DMX 512 LED transmitter built to work with the standard DMX512 protocol.

It can transmit DMX512 data for 80 channels at the same time and control 16 groups of 2.4G RGB+CCT lamps simultaneously.

DMX512 2.4GHz 80 Channels 16 Groups 30m

PRODUCT NAME	DMX 512 LED Transmitter
MODEL NO.	FUTD01
INPUT VOLTAGE	DC5V 500mA
COMMUNICATION PROTOCOL	DMX512, DMX512 (1990)
RF	2.4GHz
RF TRANSMITTING POWER	6dBm
RF CONTROL DISTANCE	30m
MODULATION METHOD	GFSK
WORKING TEMPERATURE	10~40°C

Accord with standard DMX512 protocol
Can transmit the DMX512 data of 80 channels at the same time

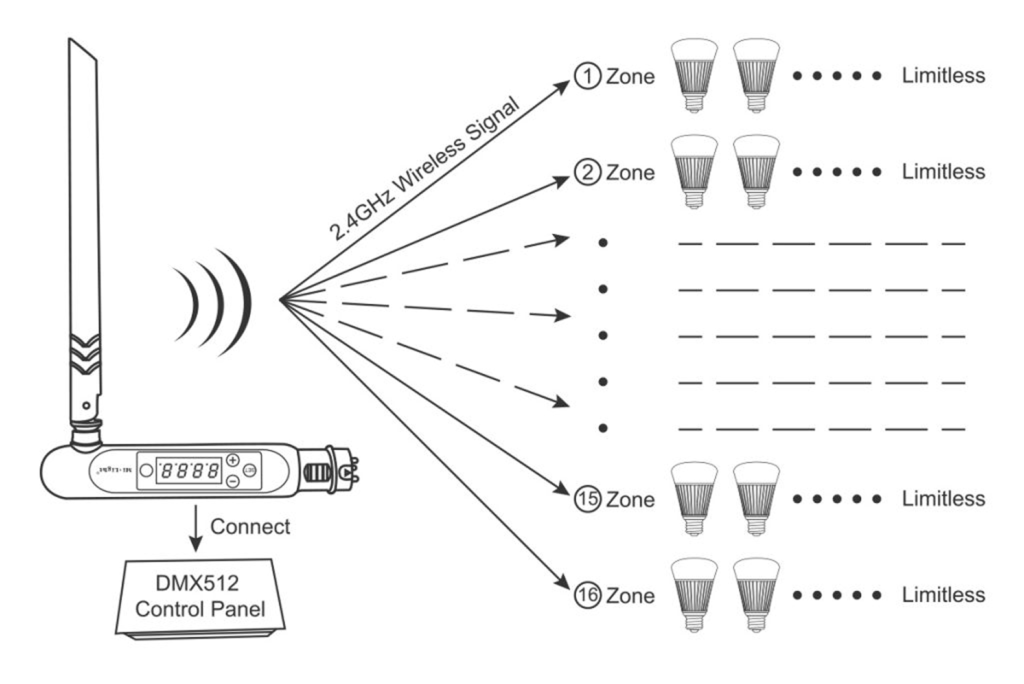

Can control 16 groups of 2.4G RGB+CCT lamps at the same time
