DEM SERIES indoor/outdoor drivers are highly efficient and stable with smooth dimming capability compatible with most TRIAC, ELV, MLV, 010V reverse and forward phase dimmers, and on/off switches. These drivers are factory derated to allow maximum wattage loading, and the wet/dry housings are IP66 rated to fit most installations.
| INPUT VOLTAGE | 110277VAC |
| OUTPUT TYPE | Constant voltage |
| OPERATING VOLTAGE | 24V / 48V multichannel constant voltage |
| RATED POWER | 384W |

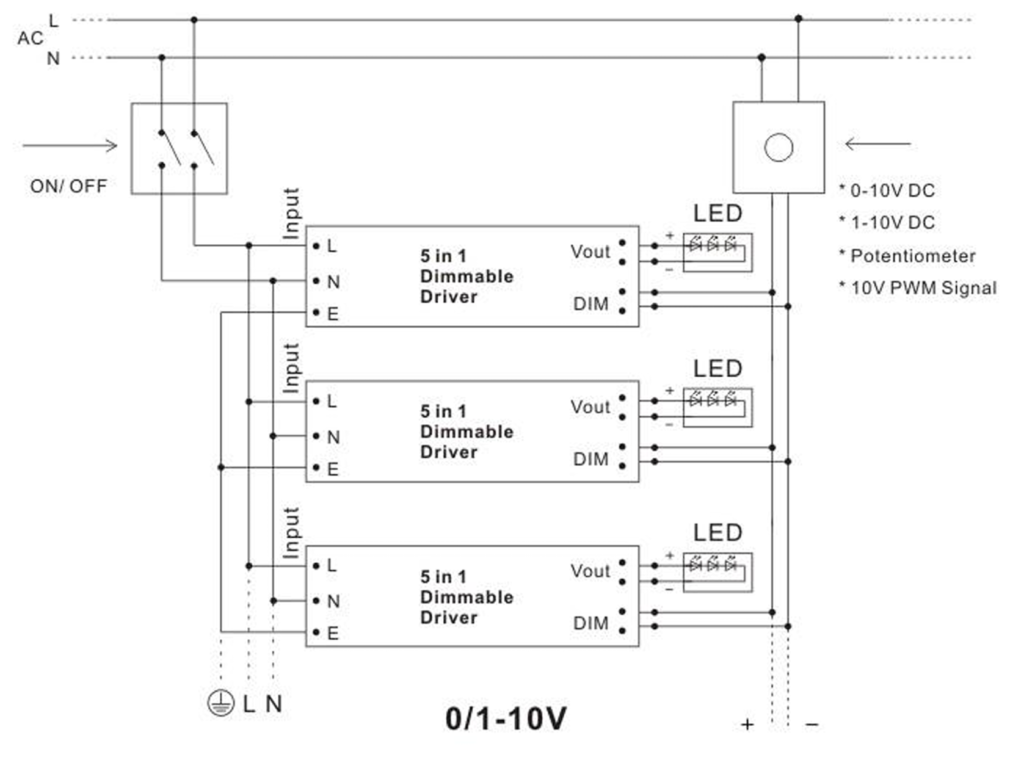

| DIMMING FUNCTION | Triac / 010V / 110V / Potentiometer / 10V PWM |
| DIMMING RANGE | 100%0.01% Ultra Deep Amplitude |

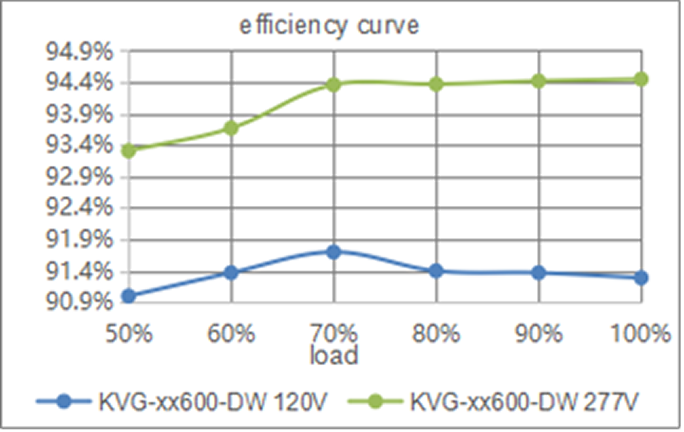

| EFFICIENCY | Up to 91% |

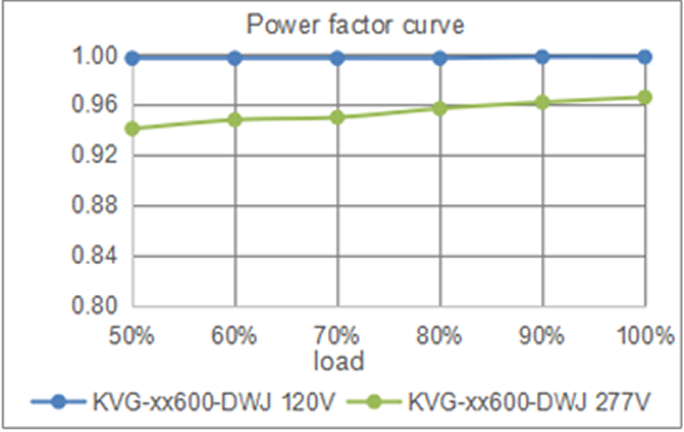

| PFC DESIGN | Builtin active PFC function |
| PROTECTION | Shortcircuit / overtemperature / overload |
| WATERPROOF PERFORMANCE | Full protection metal housing; dry, damp & wet location (24V); dry & damp location (48V) |
| APPLICATION | Suitable for LED lighting and moving sign applications |
| WARRANTY | 5 years warranty |
