WL5 – RGB+CCT LED Controller (2.4GHz)

The WL5 is an RGB+CCT LED controller with Tuya Smart app control, music rhythm support, thirdparty voice control, and 2.4G RF remote control.

The WL5 is an RGB+CCT LED controller designed for flexible color control and appbased operation.

It supports the Tuya Smart app, music rhythm, thirdparty voice control, 2.4G RF remote control, and switching between single color, dual white, RGB, RGBW, and RGB+CCT output modes.

  • Support "Tuya Smart" app control
  • Support music rhythm
  • Support third party voice control (Alexa, Google Assistant)
  • 2.4G RF Remote controllable
  • 16 millions of colors to choose
  • Color temperature adjustable
  • Brightness and saturation controllable
  • Switching 5 output mode via one button (Single color / Dual white / RGB / RGBW / RGB+CCT)
RGB+CCT WiFi+2.4G Max 15A DC12~48V 30m Tuya Smart
WL5 – RGB+CCT LED Controller (2.4GHz)
WL5 – RGB+CCT LED Controller (2.4GHz)
WL5 – RGB+CCT LED Controller (2.4GHz)
WL5 – RGB+CCT LED Controller (2.4GHz)
PRODUCT NAME 5 in 1 LED Strip Controller (WiFi+2.4G)
MODEL NO. WL5
INPUT VOLTAGE DC12~48V
OUTPUT 6A/Channel
TOTAL OUTPUT Max 15A
RF 2.4GHz
CONTROL DISTANCE 30m
WORKING TEMPERATURE 20~60°C
WIFI STANDARD IEEE 802.11b/g/n 2.4GHz
BLUETOOTH PROTOCOL Bluetooth 4.2 (low power consumption)
  • Support "Tuya Smart" app control
  • Support music rhythm
  • Support third party voice control (Alexa, Google Assistant)
  • 2.4G RF Remote controllable
  • 16 millions of colors to choose
  • Color temperature adjustable
  • Brightness and saturation controllable
  • Switching 5 output mode via one button (Single color / Dual white / RGB / RGBW / RGB+CCT)

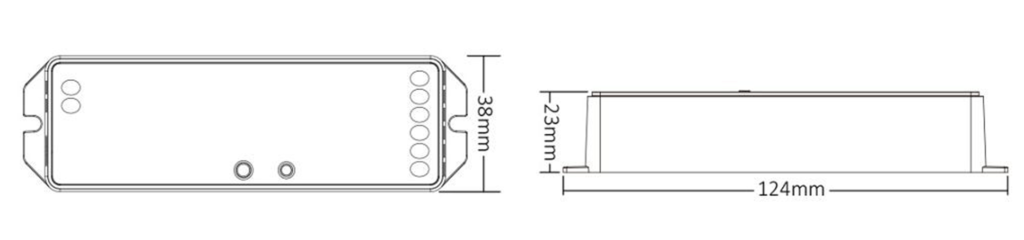

WL5 – RGB+CCT LED Controller (2.4GHz) Dimensions
⬇WL5
