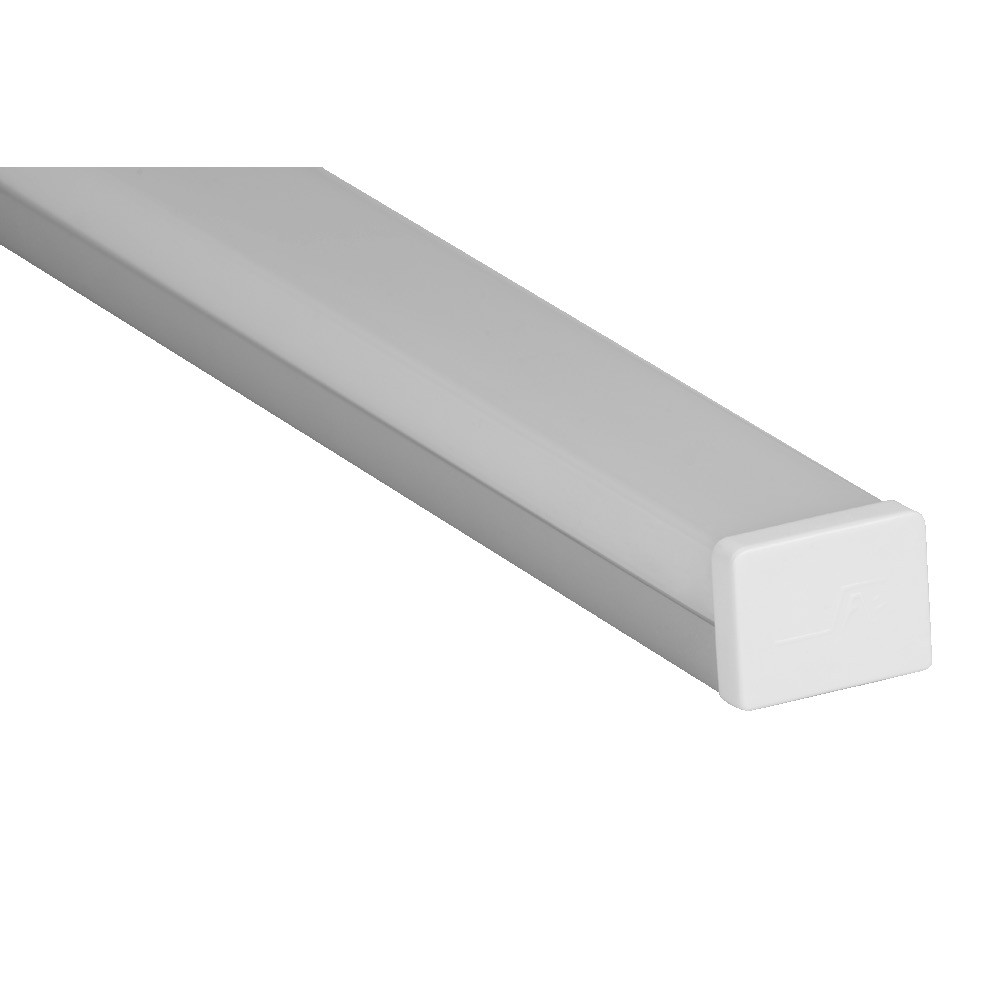

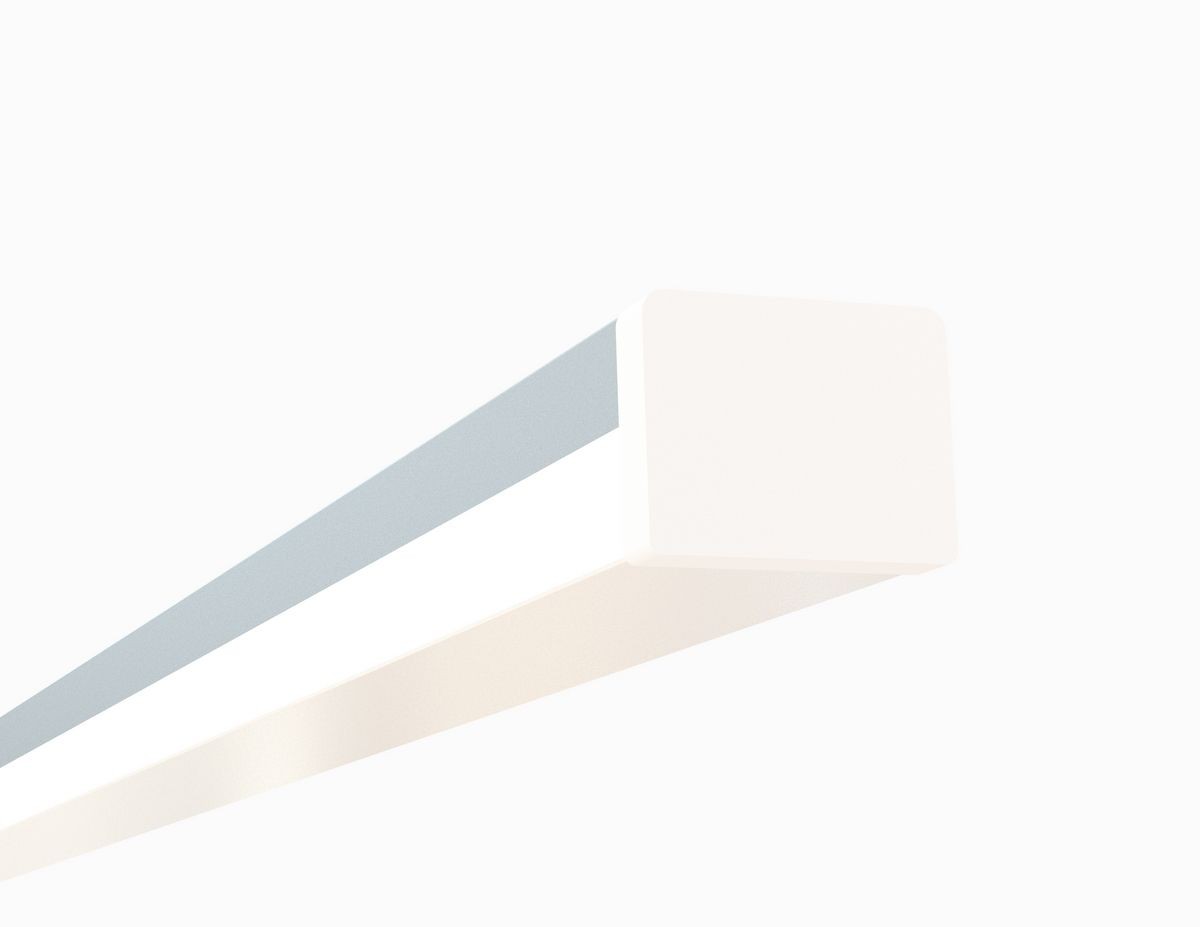

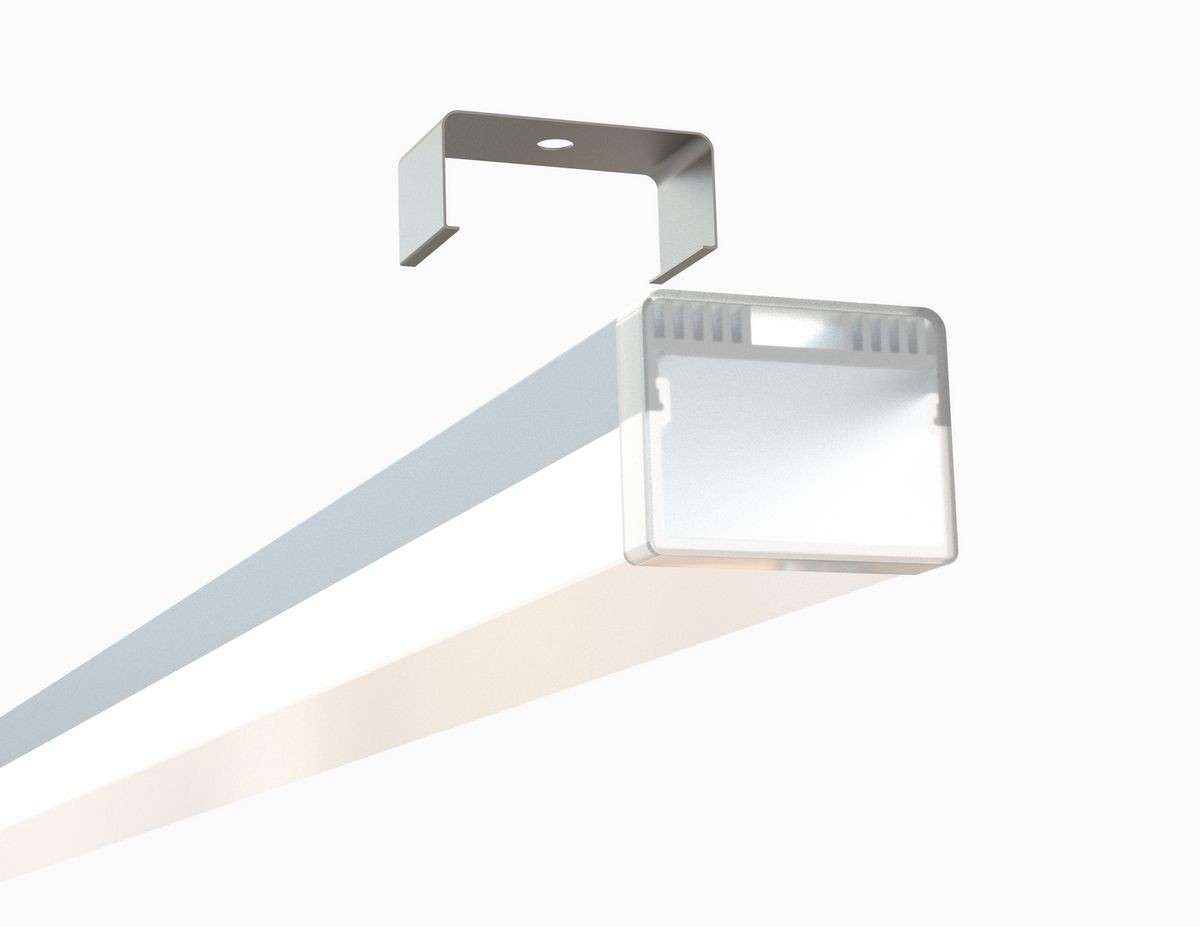

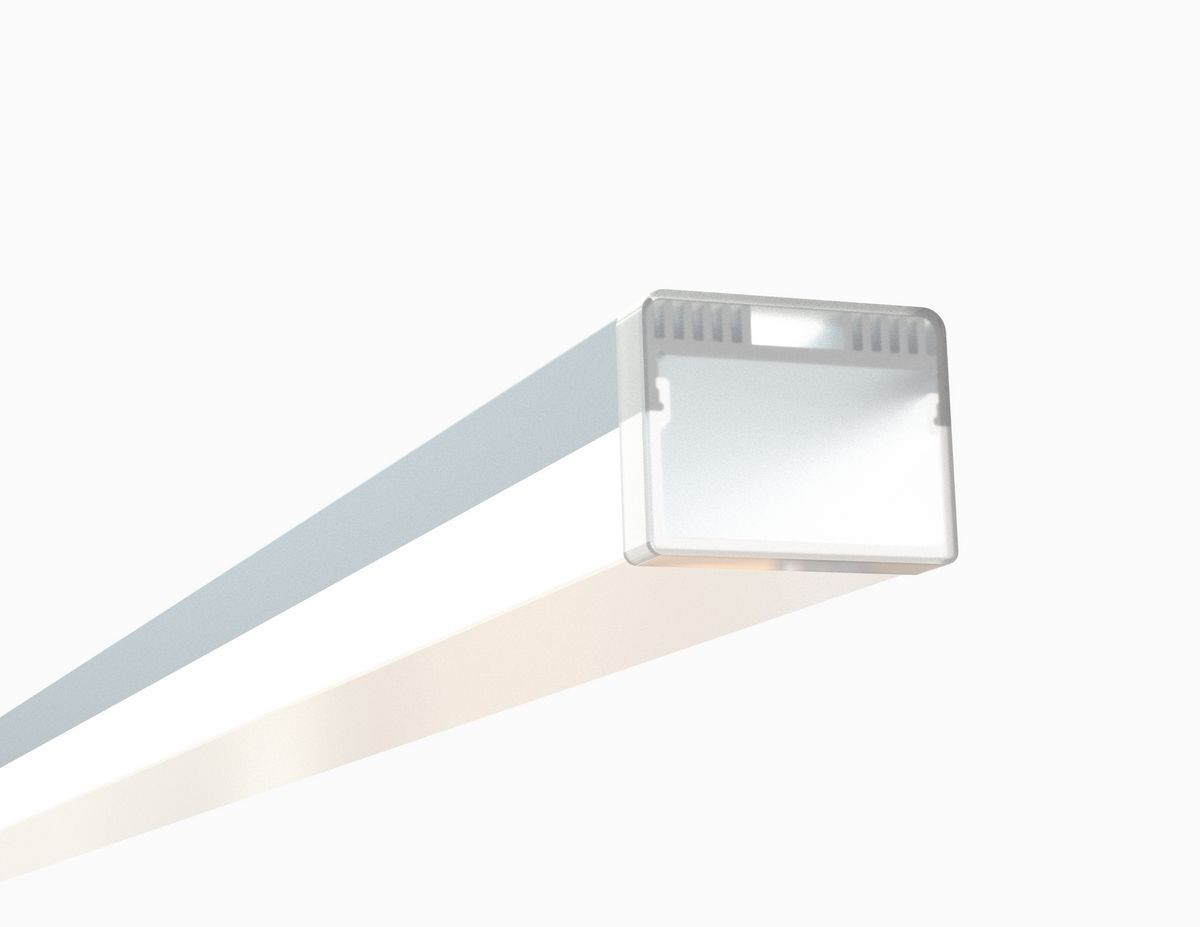

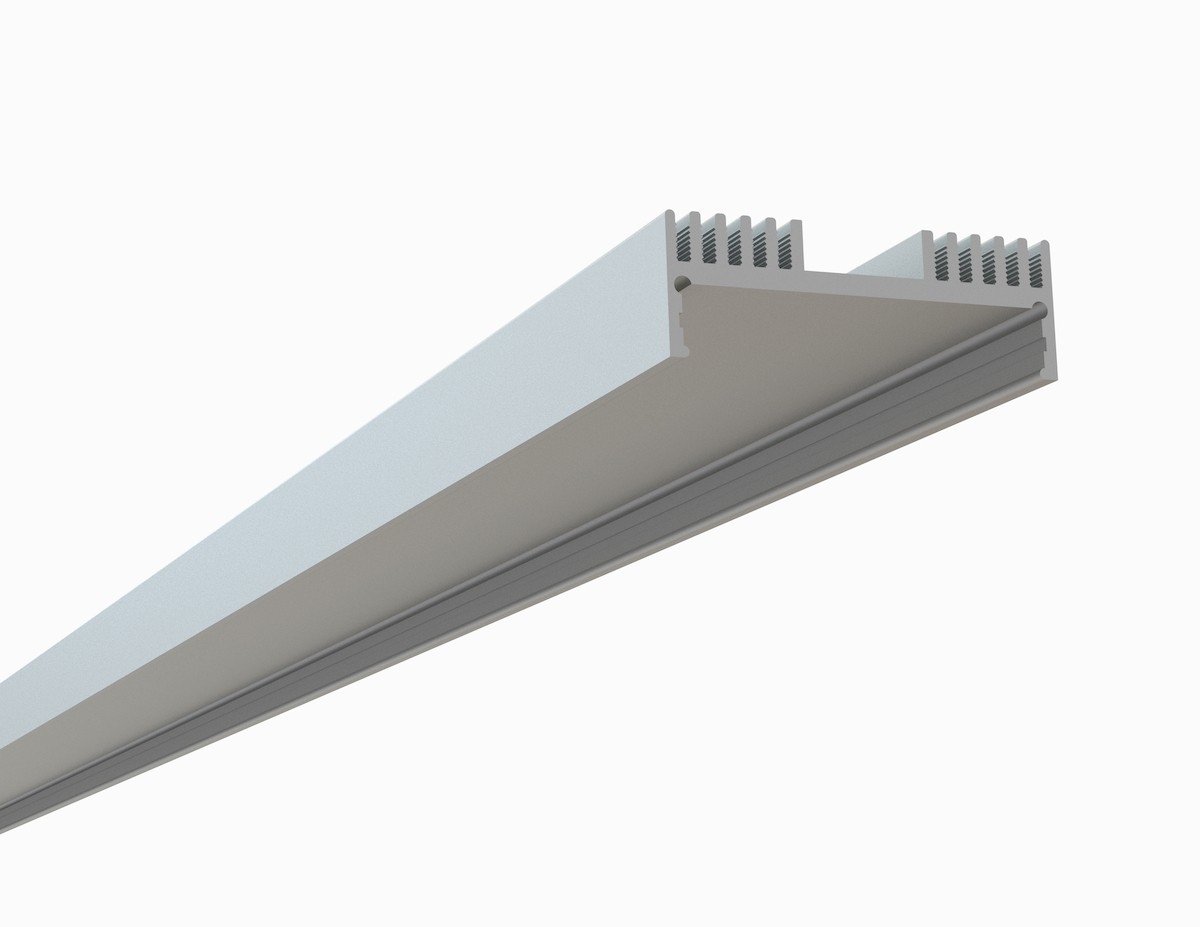

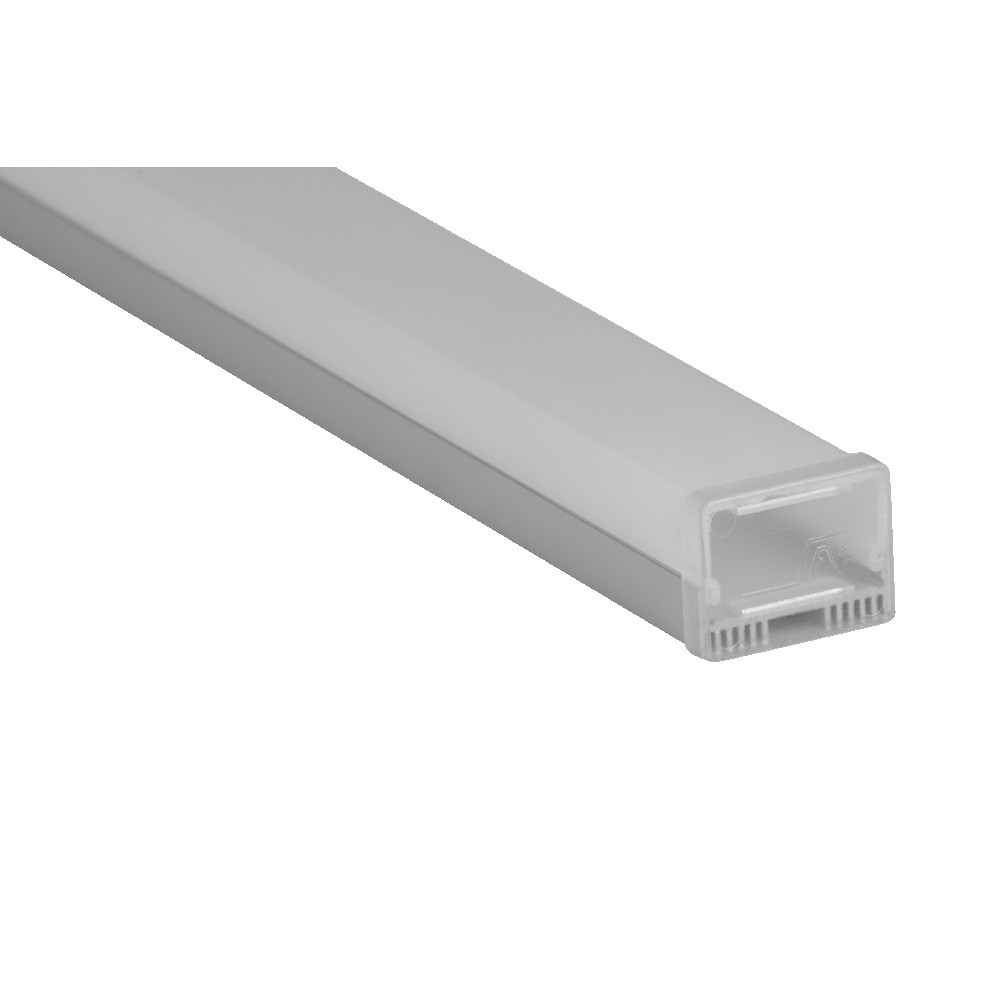

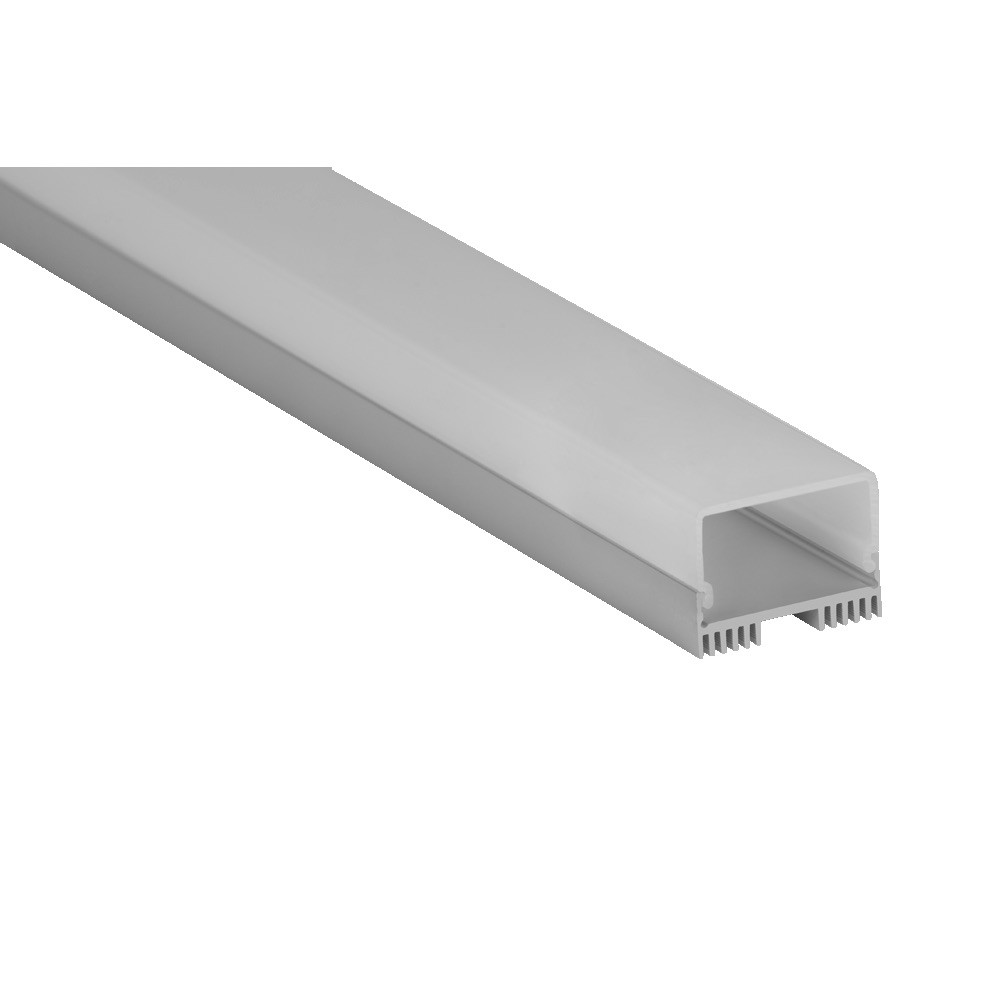

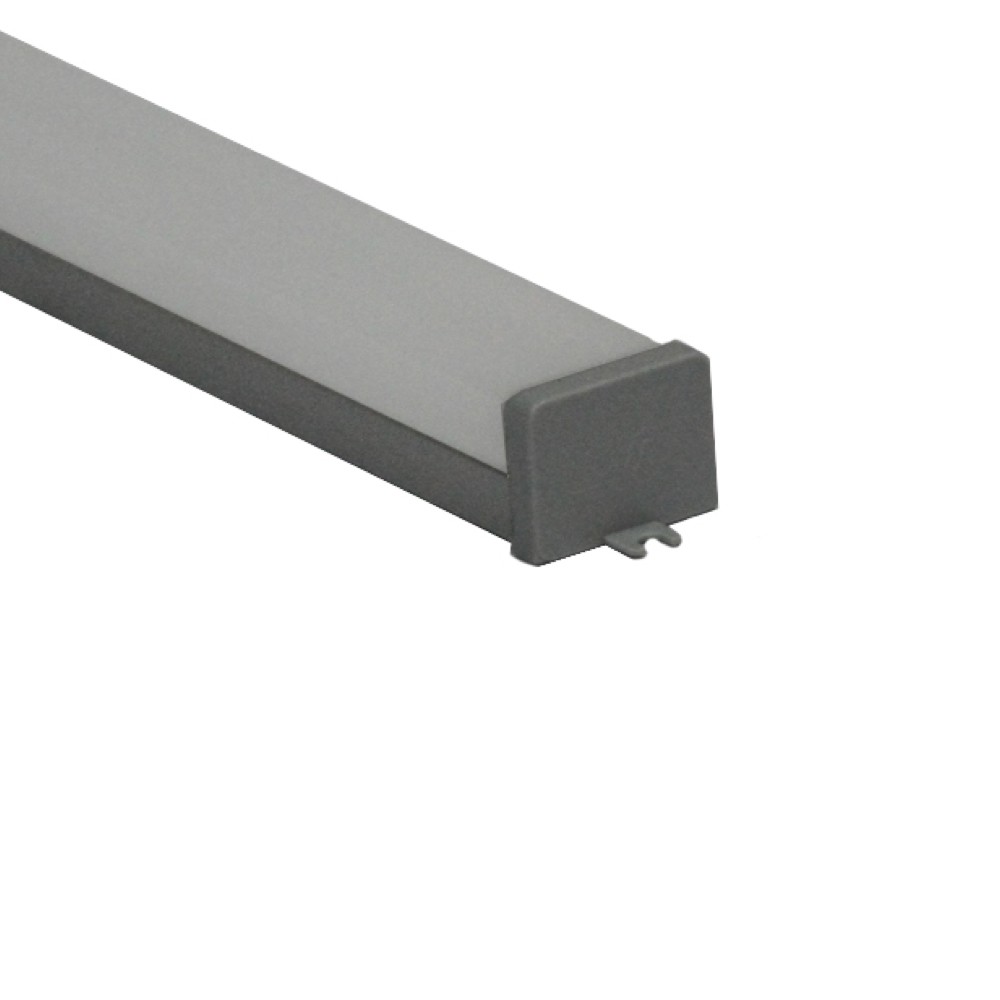

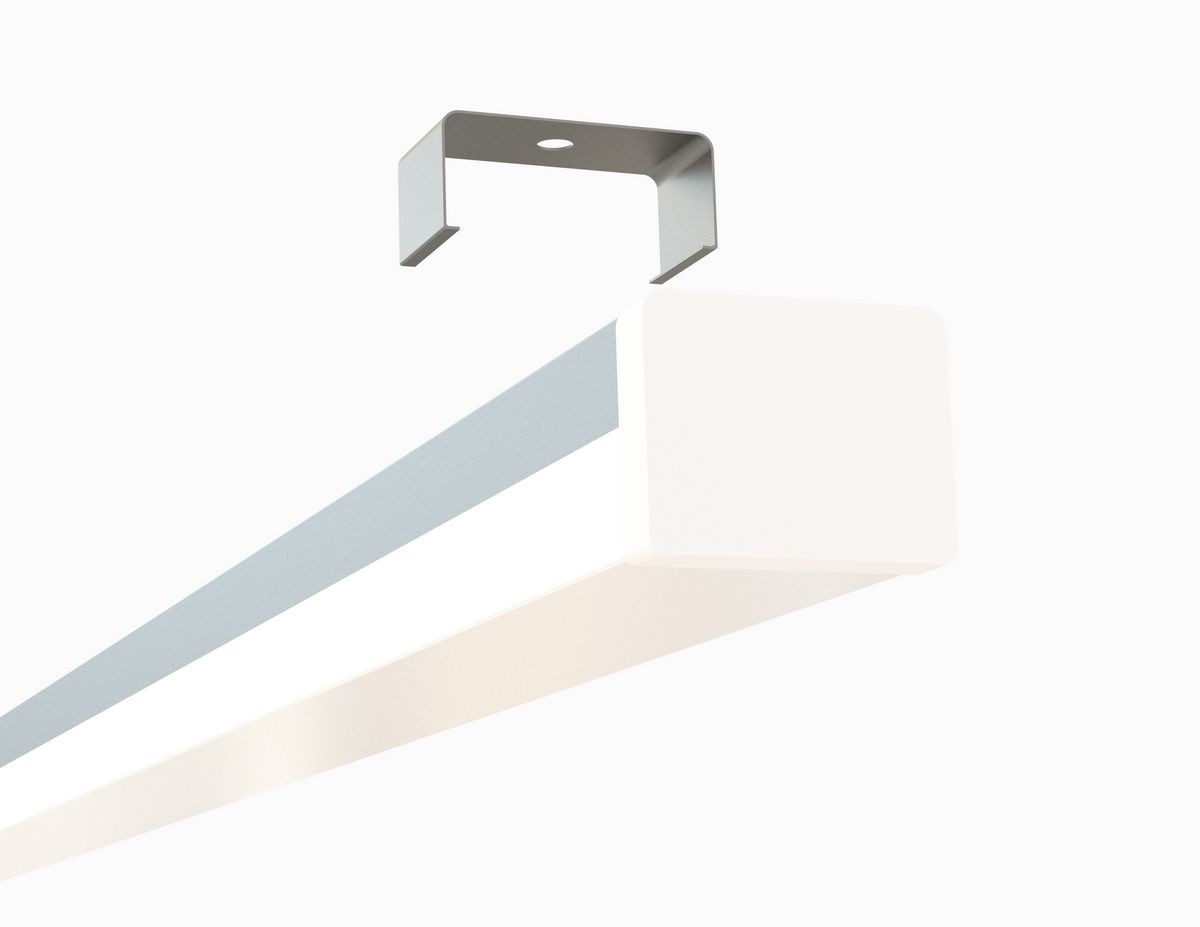

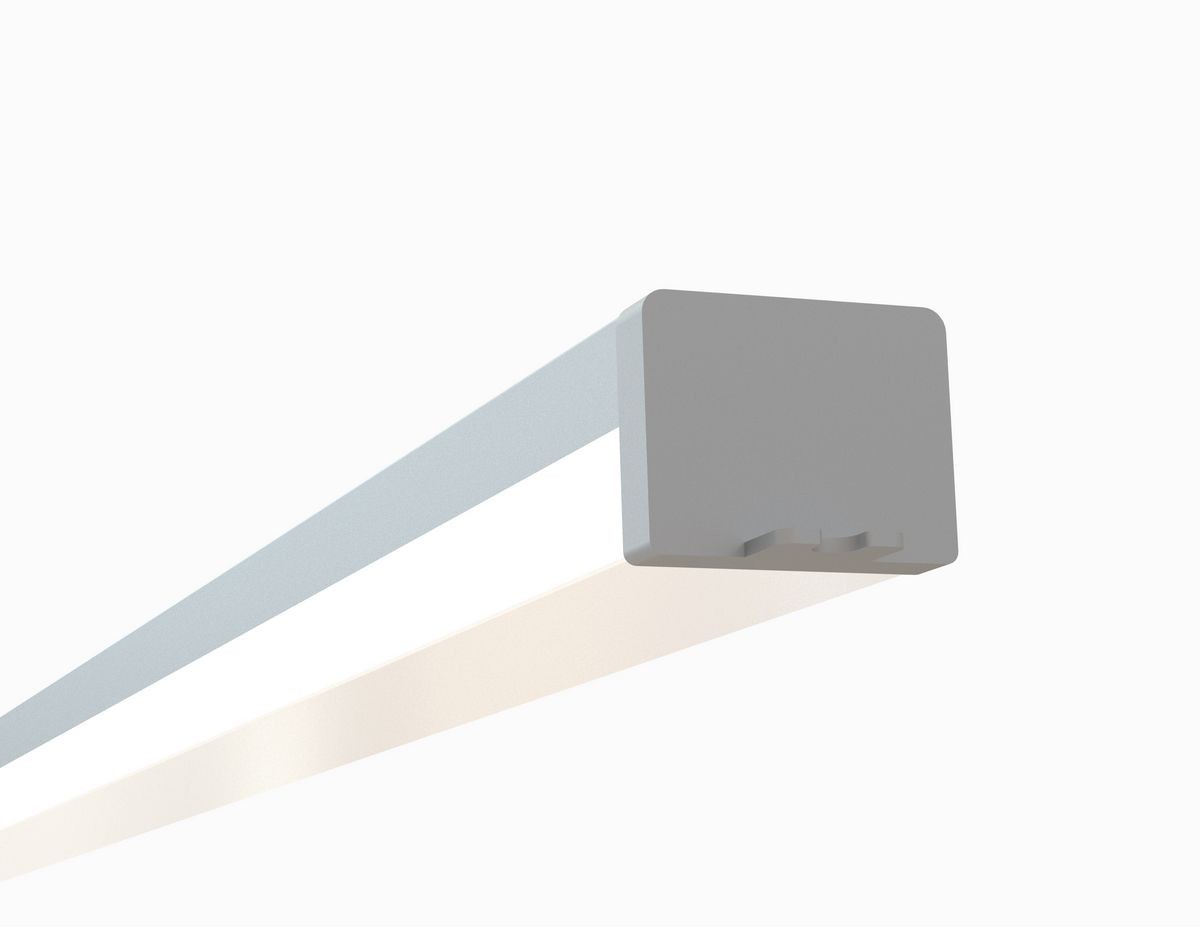

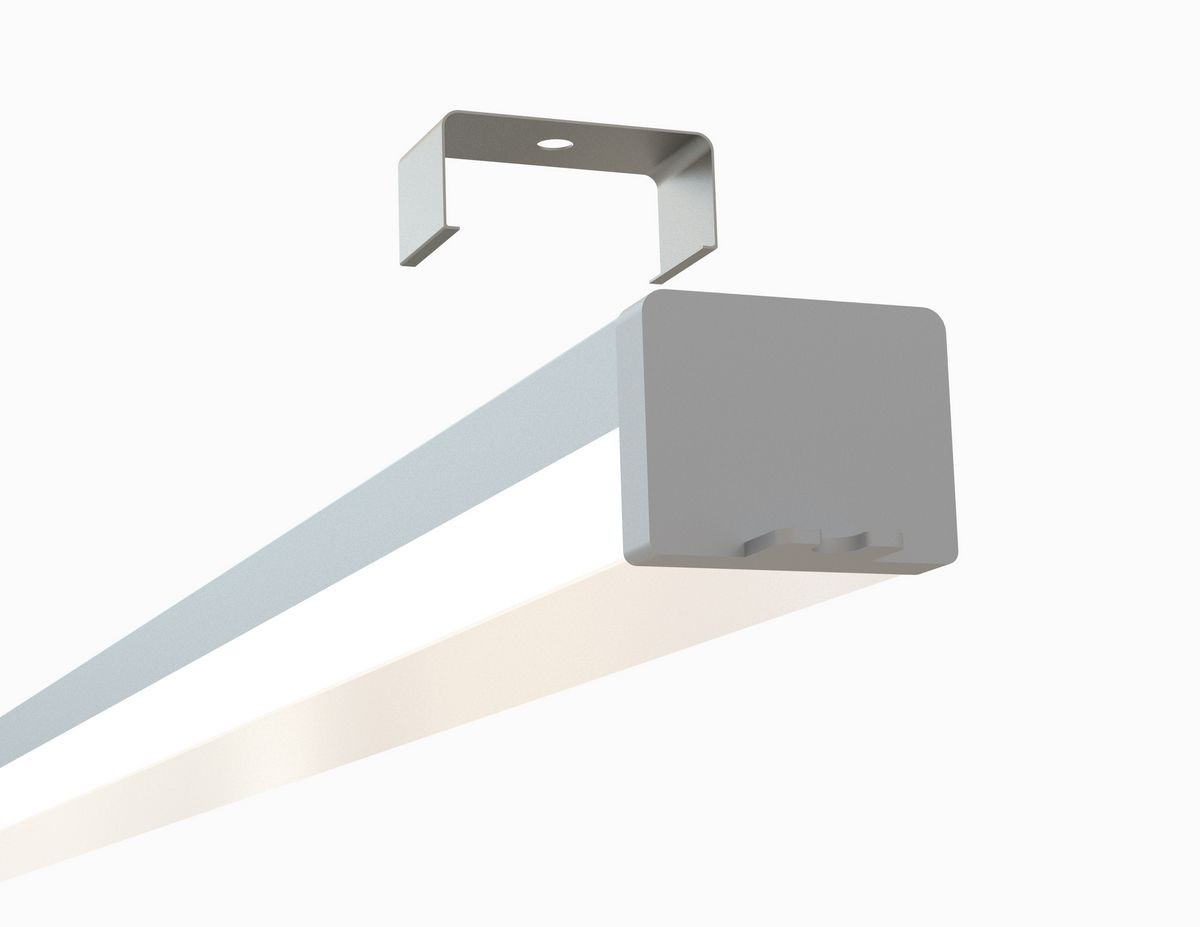

2147ASL – Square LED Channel

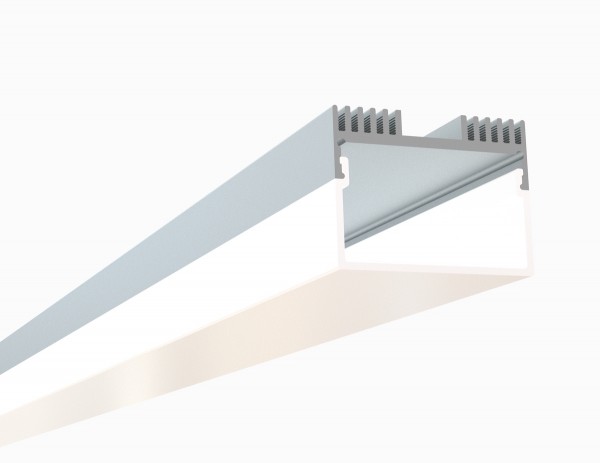

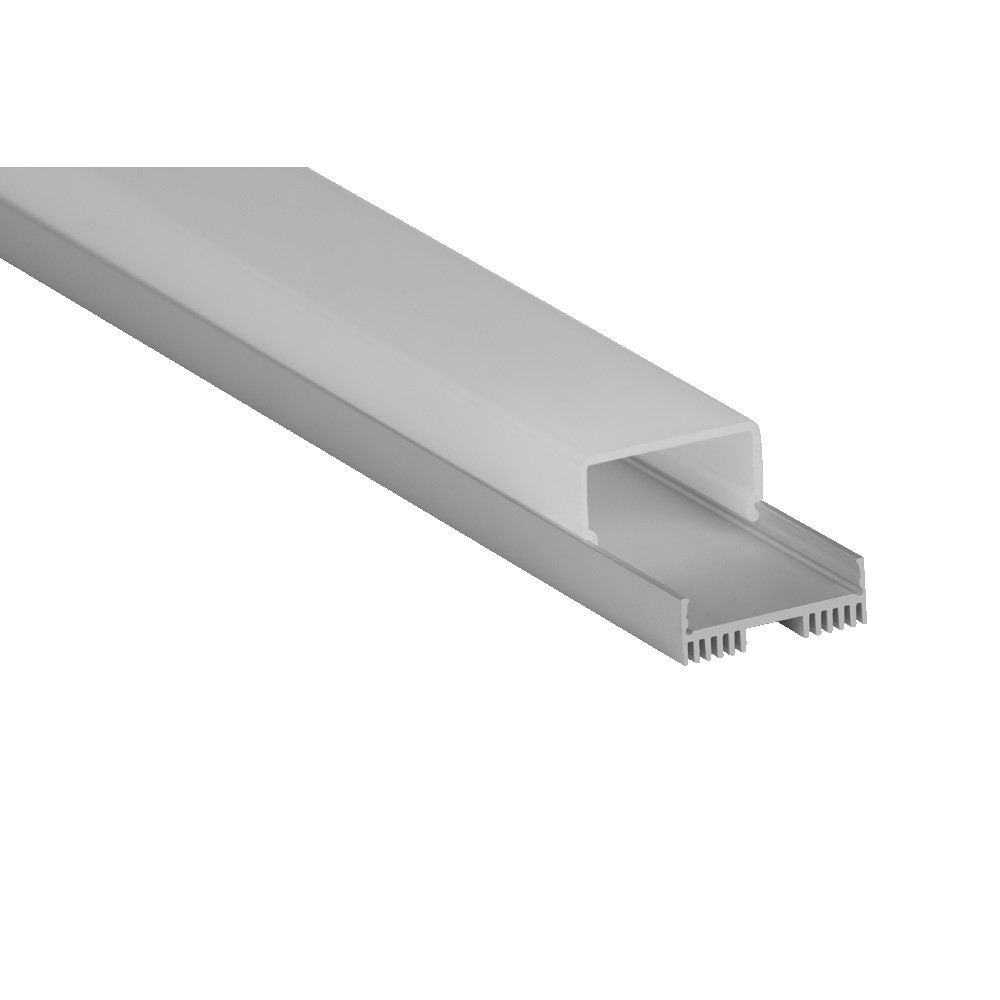

The 2147ASL is a rectangular-shaped LED Channel compatible with LED Strips up-to 25.4mm (1.00”) wide. Thanks to its heatsink design, it offers best-in-class performance for high-output lighting applications.

Category :

Additional information

Type

LED Channel

Material

Aluminum 6063-T5

Surface

Natural Anodized

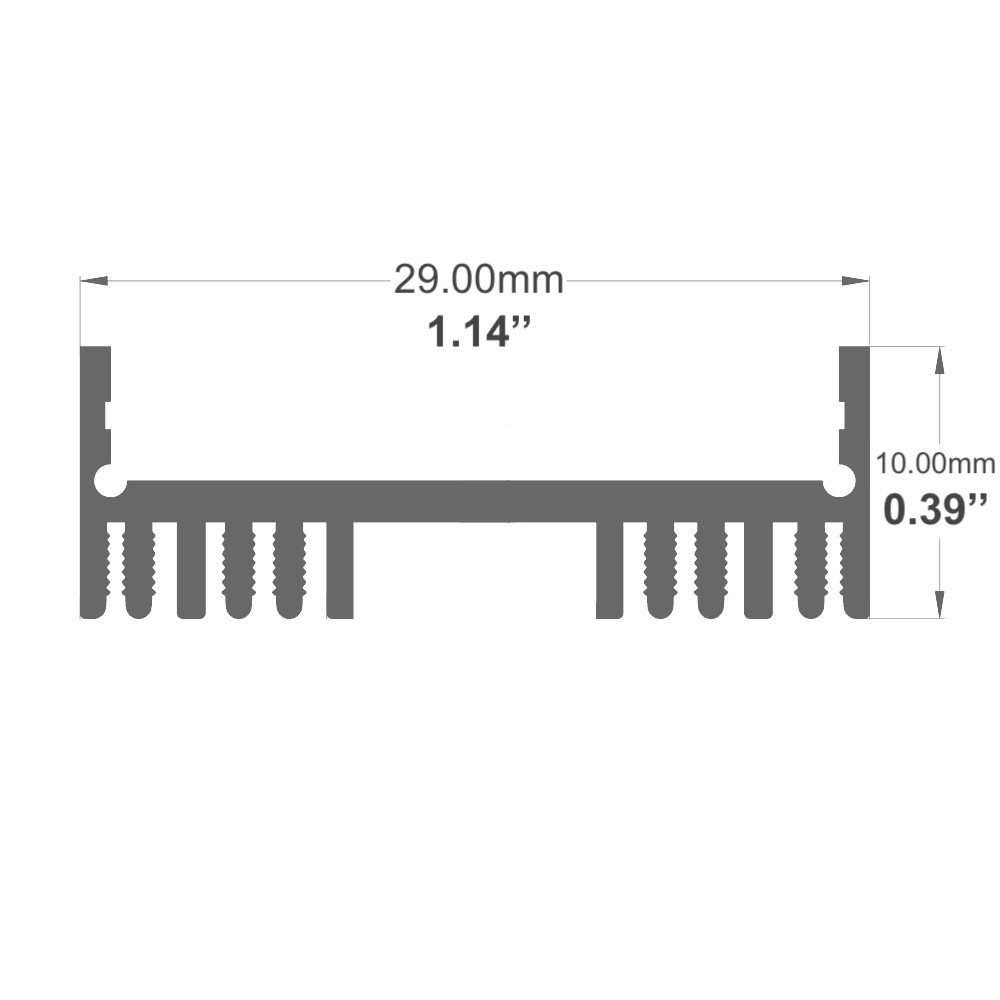

Channel Height:

10.00mm / 0.39"

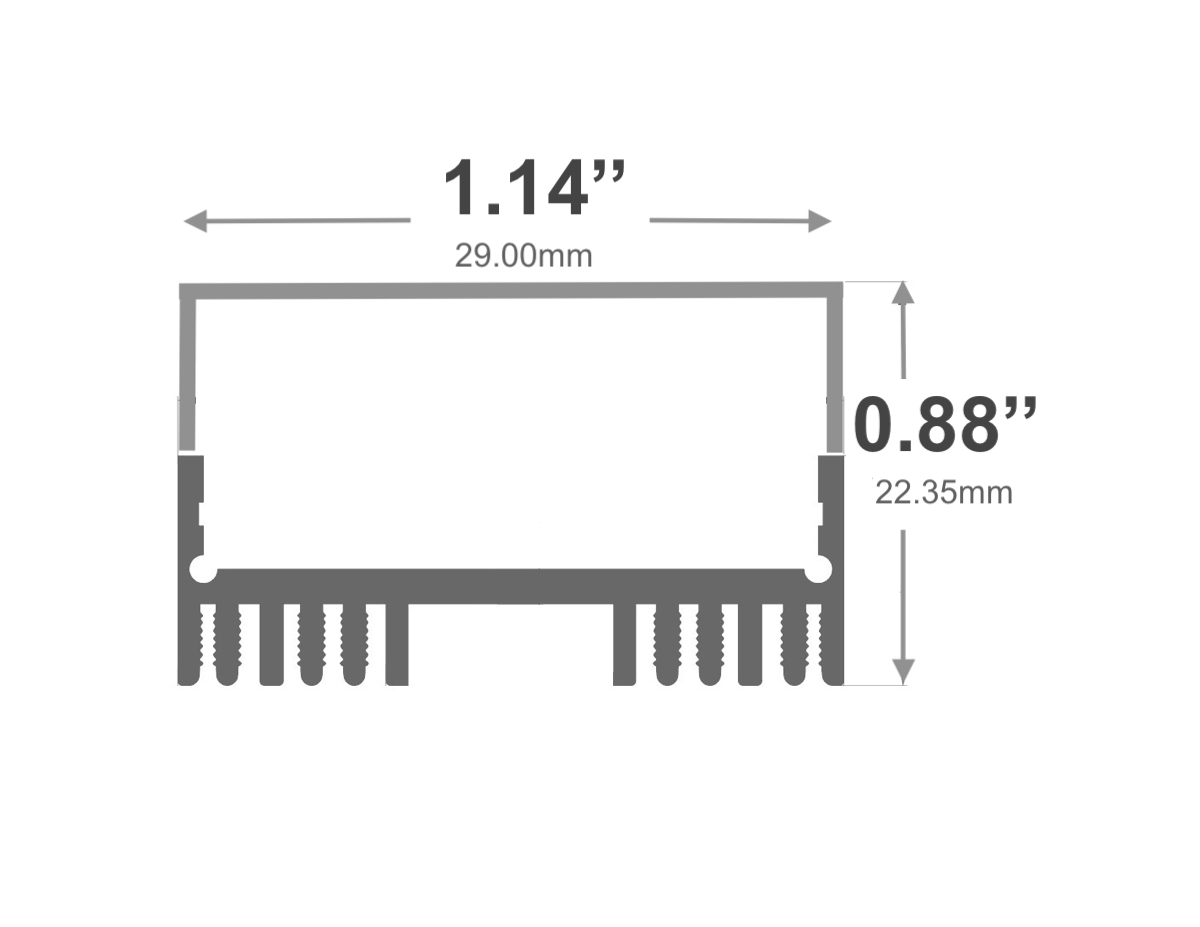

Height with Diffuser

22.35mm / 0.88"

Width

29.00mm / 1.14"

Length Availability

4ft (Actual Size 47'') / 1.20m
8ft (Actual Size 94'') / 2.40m
10ft (Actual Size 118'') / 3.00m
Custom Lengths up to 10ft / 3m
